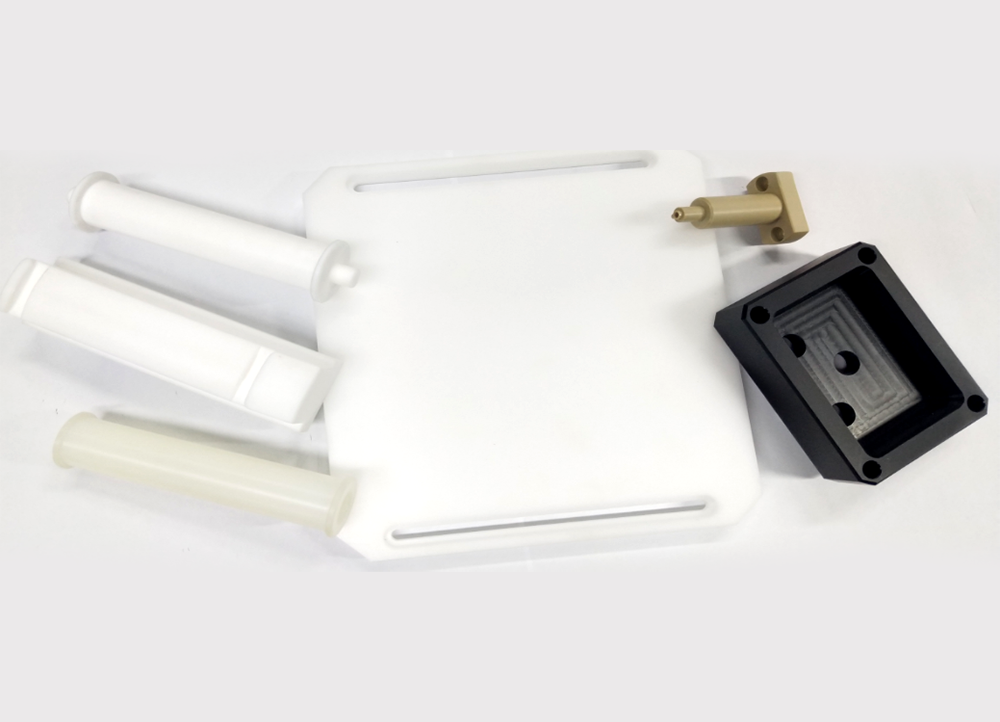

Custom Black/White POM, PTFE, ABS, Nylon, PEEK Engineered Plastic Parts
Header include
This process describes a customized precision processing solution for parts made of engineering plastic materials, covering a variety of polymer materials such as black/white POM (polyoxymethylene), polytetrafluoroethylene (PTFE), ABS, nylon (PA), and PEEK (polyetheretherketone). The core lies in achieving precise forming of complex structures through numerical control processing technology based on the distinct physical and chemical properties of materials, meeting the special functional requirements such as lightweight, corrosion resistance, insulation or low friction in various industrial fields. It belongs to the typical category of non-metallic functional parts manufacturing.
ManufacturingObjects
The processing objects are widely used in fields such as automated equipment, semiconductor manufacturing, medical devices, automotive parts and precision instruments. Specific parts include but are not limited to: light-load gears and bearings made of POM, highly corrosion-resistant sealing rings and bushings made of PTFE, ABS for prototype verification and shells, wear-resistant guide rails and fasteners processed from nylon, as well as medical implant trials, semiconductor wafer carriers and aerospace connectors made of high-performance plastics such as PEEK. All these parts need to achieve functional combinations that are difficult to realize through metal or other processes through mechanical processing.
Core features and requirements
The core features of this type of processing are "tailoring techniques to materials" and "functional orientation". The hardness, toughness, coefficient of thermal expansion and sensitivity to heat of different plastics vary greatly: high-temperature materials such as PEEK need to cope with high heat loads, soft materials such as PTFE need to overcome elastic deformation, and ABS needs to prevent melting and sticking to the knife. The processing requirements are not limited to dimensional accuracy (typically with tolerances ranging from ±0.05mm to ±0.1mm), but more importantly, it is about maintaining the inherent properties of the material, such as preventing PEEK from degrading due to overheating, ensuring the chemical purity of PTFE, controlling the deformation of nylon after moisture absorption, and guaranteeing that all processed surfaces (especially the friction surfaces) are free of burrs, delamination or burns.
Key processes and technologies
To address the above challenges, a highly targeted process chain needs to be adopted:
Process planning and pretreatment: Conduct strict drying and pretreatment of materials based on their hygroscopicity (such as nylon, PEEK). When programming, it is necessary to optimize the tool path and minimize the time spent on the material to prevent heat accumulation.
Specialized tool selection: Generally, special plastic tools with sharp cutting edges, large rake angles and large chip removal grooves are adopted. For materials such as PEEK reinforced with glass fibers, diamond coatings or cemented carbide tools should be used to resist abrasion. When processing soft PTFE, the extreme sharpness of the cutting edge is emphasized to reduce extrusion deformation.
Cutting parameters and cooling: Adopt a strategy of high speed, fast feed, and moderate depth of cut to form clean chips through shearing action. Compressed air or micro-atomization cooling is usually used for heat dissipation and chip removal to prevent dimensional changes or hydrolysis of certain materials (such as POM) caused by water-based coolants.
Clamping and post-processing: Use flexible fixtures or low-pressure clamping solutions to prevent deformation of thin-walled or elastic parts. After processing, deburring (commonly using cryogenic deburring or manual fine finishing), cleaning and plasma cleaning when necessary (such as PEEK medical parts) are required to meet the delivery standards.
Conclusion
In conclusion, the processing of customized engineering plastic parts is a deep integration of materials science and precision manufacturing technology. The key to success lies in a profound understanding of the characteristics of various polymer materials and customizing differentiated cutting tools, parameters and process flows accordingly. Through meticulous process control, not only can complex geometric shapes be precisely replicated, but also the unique functional advantages of materials can be effectively protected and brought into play. Thus, in high-end industrial applications, traditional metal or ceramic materials can be replaced, achieving multiple goals such as weight reduction, noise reduction, corrosion resistance, and insulation. This demonstrates the strong adaptability and value of modern manufacturing technology in the diversified application of materials.
