Transitioning a conceptual design from a digital file into high-precision hardware requires a deep understanding of Computer Numerical Control (CNC) architecture. While many associate "using" a CNC machine with the physical setup, professional application hinges on the synergy between CAD/CAM software and the mechanical limits of the mill itself. This reality often creates a significant precision gap for teams unprepared for the complexities of subtractive manufacturing. The process is far more than pressing a "start" button; it is an integrated workflow where digital instructions command physical reality with micron-level accuracy. This guide outlines the end-to-end workflow for producing industrial-grade components. It provides a strategic framework for deciding between in-house operation and leveraging a professional cnc milling service to achieve your engineering goals.
Workflow Integration: Success depends on the seamless transition from CAD design to G-code generation and machine calibration.
Design for Manufacturability (DFM): Minor design adjustments significantly impact tool path efficiency and final part cost.
Build vs. Buy: Evaluating the Total Cost of Ownership (TCO) of internal machining versus the scalability of outsourced services.
Quality Benchmarks: Understanding tolerances, surface finishes, and material behavior is non-negotiable for mission-critical components.
Executing a CNC milling job is a systematic process that transforms a digital idea into a tangible part. This workflow is divided into three distinct but interconnected stages: the digital foundation, the physical setup, and the final execution. Each phase requires careful attention to detail to ensure the final product meets all specifications.
Everything begins in the digital realm. This initial phase is where the part's geometry is defined and translated into a language the CNC machine can understand. Errors made here will inevitably be replicated in the physical part, making this stage critical for success.
Computer-Aided Design (CAD): The process starts with a 3D model created in CAD software like SolidWorks, Fusion 360, or CATIA. During this step, engineers must practice Design for Manufacturability (DFM). This means designing with the physical limitations of milling in mind. For example, internal corners cannot be perfectly sharp because they are cut with a round tool; they will always have a radius equal to the tool's radius. Designing with appropriate corner radii from the start prevents costly rework.
Computer-Aided Manufacturing (CAM): Once the CAD model is finalized, it is imported into CAM software. The CAM programmer's job is to define the machining strategy. This involves selecting the right cutting tools, setting the toolpaths (the route the tool will take), and defining speeds and feeds. The software then simulates the entire process, allowing the programmer to identify potential collisions or inefficiencies before any material is cut. The final output from the CAM software is a text file containing G-code—the precise coordinates and commands that direct the CNC mill's every move.
With the G-code generated, the focus shifts to the physical machine. Proper setup is paramount for both safety and accuracy. An unstable workpiece or an improperly calibrated tool can lead to scrapped parts, broken tools, or even damage to the machine itself.
Workholding: The raw material (workpiece) must be securely fastened to the machine table. This is known as workholding. The choice of fixture depends on the part's geometry and the forces it will endure during machining. Common methods include a simple machinist's vise, custom-made soft jaws, clamps, or even vacuum tables for flat sheets. The goal is to ensure the part does not move a single micron during the operation.
Tool Loading and Calibration: The specific cutting tools defined in the CAM program are loaded into the machine's tool changer. Each tool's length and diameter must be precisely measured using a tool probe or other presetting device. This data is entered into the machine's controller, ensuring it knows the exact dimensions of each tool.
Setting the Work Coordinate System (WCS): The machine needs to know the exact location of the workpiece in its workspace. This is achieved by setting a "Work Home" or WCS, often referred to as the "part zero." An operator uses a sensitive probe (like an edge finder or a digital probing system) to touch off the X, Y, and Z axes of the workpiece. This reference point aligns the G-code program with the physical stock material.
This is the stage where material is removed and the part takes shape. While largely automated, it still requires skilled oversight to manage variables and prevent problems. The operator's role shifts from setup to monitoring and quality control.
Program Verification (Dry Run): Before cutting metal, operators often perform a "dry run." This involves running the program several feet above the workpiece or with the spindle off. It allows the operator to watch the machine's movements and verify that the toolpaths are correct, preventing catastrophic "crashes" due to programming errors.
Managing Machining Parameters: During the actual cutting process, the operator monitors the machine's performance. They listen for signs of tool wear or excessive vibration ("chatter") and may adjust the programmed feeds and speeds (known as "overrides") to optimize performance. They also ensure that coolant is being applied effectively to lubricate the cutting edge and flush away chips, which is critical for maintaining thermal stability and achieving a good surface finish.
Achieving high precision in CNC Milling Parts is not accidental. It is the result of deliberate choices regarding materials, dimensional controls, and surface treatments. These factors collectively determine a component's functional performance, lifespan, and cost.
The material you choose directly influences every aspect of the milling process, from tool selection to cycle time and final cost. Machinability refers to the ease with which a material can be cut, and it varies dramatically between different alloys and plastics.
For example, aerospace-grade aluminum alloys like 6061-T6 and 7075-T6 are popular because they offer excellent strength-to-weight ratios and are relatively easy to machine. In contrast, stainless steels like 304 and 316 are much tougher and more abrasive. They require more rigid setups, specialized cutting tools (often with coatings like TiAlN), and slower cutting speeds to manage heat and prevent rapid tool wear. Engineering plastics like PEEK and Delrin present their own challenges, such as low melting points and a tendency to deflect under cutting pressure.
Material hardness, measured on scales like Rockwell or Brinell, is a key determinant of machinability. Harder materials require more force to cut, generating more heat and stress on the cutting tool. This necessitates slower cycle times and can increase tooling costs, directly impacting the final part price.
| Material | Key Properties | Machinability Notes |
|---|---|---|
| Aluminum 6061-T6 | Good strength-to-weight, corrosion resistant. | Excellent. Allows for high cutting speeds and feeds. Chips are manageable. |
| Stainless Steel 304 | Excellent corrosion resistance, tough. | Fair. Work-hardens quickly. Requires lower speeds, high feed rates, and ample coolant. |
| PEEK | High-temp resistance, chemically inert, strong. | Good, but requires sharp tools to avoid melting. Can be abrasive due to fillers (e.g., glass or carbon fiber). |
| Delrin (Acetal) | Low friction, high stiffness, good dimensional stability. | Excellent. Machines cleanly with minimal burrs. Chips easily. |
GD&T is a symbolic language used on engineering drawings to define the allowable variation in a part's geometry. It goes beyond simple +/- dimensions to control features like flatness, perpendicularity, and position. Tolerances dictate how much a feature's size or location can deviate from the nominal value.
Defining Achievable Tolerances: A standard machine shop can typically hold tolerances of +/- 0.005 inches (+/- 0.127 mm) without special effort. Achieving tighter, precision tolerances of +/- 0.001 inches (+/- 0.025 mm) or less requires more advanced machinery, controlled environments, and more frequent inspections, all of which increase cost. It is a best practice to only specify tight tolerances where they are functionally necessary.
Tolerance Stack-Up: In complex assemblies, the individual tolerances of mating parts can accumulate, or "stack up." This can lead to interference or excessive looseness in the final assembly. Engineers use tolerance analysis to predict this stack-up and ensure the final product functions correctly, a critical consideration for mission-critical applications.
Surface finish refers to the texture and roughness of a machined surface, often measured in Ra (Roughness Average). The "as-machined" finish is determined by factors like the tool's sharpness, feed rate, and machine rigidity. A standard milled finish might be around 125 Ra (micro-inches), while a fine finish could be 32 Ra or better.
Many components require secondary operations after milling to enhance their properties or appearance. These post-processing steps are integral to the part's final performance:
Anodizing: An electrochemical process for aluminum that creates a hard, corrosion-resistant oxide layer. It can also be used to add color.
Bead Blasting: Creates a uniform, non-directional matte finish by impacting the surface with fine media (like glass beads).
Heat Treatment: Alters the metallurgical properties of metals to increase hardness, strength, or toughness.
Plating: Adds a thin layer of another metal (like nickel or chromium) to improve wear resistance or corrosion protection.
The decision to produce parts in-house or to outsource to a dedicated provider is a strategic one with long-term financial and operational implications. A simple cost-per-part comparison is often misleading. A robust evaluation requires a Total Cost of Ownership (TCO) approach, factoring in capital investment, operational overhead, and risk management.
Operating an in-house CNC machine shop involves far more than the initial purchase price of the equipment. It represents a significant capital expenditure (CAPEX) with a long tail of associated operational expenditures (OPEX).
The hidden costs of in-house machining are substantial:
Machine Maintenance: CNC machines require regular preventative maintenance, including lubrication, filter changes, and calibration, plus unplanned repairs.
Specialized Labor: Skilled CNC machinists and programmers command high salaries and require ongoing training.
Tooling and Consumables: Cutting tools, holders, fixtures, and coolant are significant recurring costs. Tooling depreciates and must be replaced frequently.
Floor Space: A CNC mill, along with its support equipment and inventory storage, consumes valuable square footage.
Software and Utilities: Licensing fees for CAD/CAM software and increased electricity consumption add to the overhead.
In contrast, using an external cnc milling service shifts these costs to a predictable per-part pricing model (OPEX). This eliminates the upfront investment and makes budgeting more straightforward, especially for startups and companies with fluctuating production needs.
| Factor | In-House Machining | Outsourced CNC Service |
|---|---|---|
| Initial Cost | High (CAPEX) | None |
| Recurring Costs | High & Variable (OPEX for labor, tooling, maintenance) | Predictable & Scalable (OPEX per part) |
| Expertise | Must be hired and retained | Included in the service |
| Scalability | Limited by machine capacity and staff | Virtually unlimited |
| Technology Access | Limited to owned equipment | Access to latest tech (e.g., 5-axis, CMM) |
An in-house machine shop is inherently limited by its equipment and personnel. During rapid prototyping phases, a single machine might suffice. However, when transitioning to high-volume production runs, this setup can quickly become a bottleneck, delaying product launches and frustrating customers. Scaling up requires purchasing more machines and hiring more staff, a slow and expensive process.
A professional service provider overcomes this limitation by leveraging a large fleet of machines and a deep pool of talent. They can easily shift from producing a single prototype to manufacturing thousands of units. Furthermore, they offer access to advanced technology, like 5-axis milling, which can produce highly complex geometries in a single setup. Investing in a 5-axis machine can cost upwards of $250,000, making it prohibitive for many companies, but outsourcing provides access to this capability on demand.
Manufacturing is not without risk. Scrapped parts, tool breakages, and quality control failures are part of the process. With in-house production, your company bears the full financial burden of these issues, including the cost of wasted material, lost machine time, and labor.
When you partner with a reputable service provider, you effectively transfer a significant portion of this risk. They are responsible for delivering parts that meet your specifications. Their established quality management systems, process controls, and expertise in machining various materials minimize the likelihood of failures. If a part is non-conforming, the burden of remaking it falls on them, not you.
Choosing the right manufacturing partner is as critical as perfecting your design. A subpar provider can lead to delays, cost overruns, and parts that fail in the field. A thorough evaluation process should look beyond the price quote to assess technical capabilities, quality systems, and communication practices.
The provider's equipment directly dictates the complexity and precision of the parts they can produce. Your first step should be to match their capabilities with your project's requirements.
Axis Capabilities: Do they offer 3, 4, and 5-axis milling?
3-Axis Milling: The most common type, suitable for parts with features on a single plane.
4-Axis Milling: Adds a rotational axis, ideal for cutting features around a cylinder.
5-Axis Milling: Allows the tool to approach the workpiece from any direction, enabling the creation of highly complex contours and undercut features in a single setup. This reduces setup time and improves accuracy.
Machine Quality: Ask about the age and maintenance standards of their machines. Newer, well-maintained equipment from reputable brands (like Haas, Mazak, or DMG Mori) holds tighter tolerances and delivers more consistent results.
A robust QMS is your assurance that the provider has standardized processes for ensuring consistent quality. This is non-negotiable for industries where part failure is not an option.
Certifications: Look for internationally recognized certifications. These demonstrate that the provider has been audited and conforms to strict quality standards.
ISO 9001: The foundational standard for quality management.
AS9100: The specific standard for the aerospace industry, with more stringent requirements for traceability and process control.
ISO 13485: The standard for medical device manufacturing.
Inspection Protocols: Inquire about their inspection processes. Do they perform in-process checks to catch deviations early? Do they provide a Final Inspection Report (FIR) with every shipment, documenting the measured dimensions of critical features? Do they use advanced metrology equipment like a Coordinate Measuring Machine (CMM)?
The best manufacturing partners act as an extension of your engineering team. Their communication style and willingness to provide feedback can be a major source of value.
Many online platforms offer "automated quoting," which is fast but often lacks nuance. While convenient for simple parts, it misses opportunities for optimization. A superior provider offers engineer-led design reviews. Their experts will analyze your CAD model and provide Design for Manufacturability (DFM) feedback. This proactive communication can identify potential issues or suggest minor design changes—like adjusting a corner radius or standardizing a hole size—that can significantly reduce machining time and lower your overall cost without compromising function.
While CNC milling is an incredibly capable process, it can also be expensive if not approached strategically. Optimizing for Return on Investment (ROI) involves a combination of smart design choices, logical production planning, and clear communication with your manufacturing partner.
The most significant cost drivers in CNC milling are machine time and tooling complexity. By adhering to DFM principles, you can design parts that are faster and easier to manufacture.
Avoid Deep Pockets and Thin Walls: Machining deep, narrow pockets requires long, slender cutting tools. These tools are prone to deflection and vibration (chatter), forcing the machine to run at slower speeds and take lighter cuts. This drastically increases machine time. Similarly, very thin walls are difficult to support and can deform under cutting pressure. A good rule of thumb is to keep pocket depths to less than 4x the tool diameter and wall thicknesses above 0.030 inches (0.8 mm).
Standardize Features: Every time the machine has to change a tool, it adds time to the cycle. You can minimize these tool changes by standardizing hole sizes and thread types across your design. Using common tap sizes (e.g., M6 instead of M5.5) also reduces the need for special tooling.
Generous Corner Radii: As mentioned, perfectly sharp internal corners are impossible. Specifying the largest acceptable radius allows for the use of a larger, more rigid cutting tool, which can remove material faster and produce a better surface finish.
The economics of CNC milling are heavily influenced by quantity. The initial setup—programming, workholding, and tool calibration—represents a fixed cost. This cost is amortized over the number of parts produced in a single run.
As a result, the unit price for 100 parts will be significantly lower than the unit price for 10 parts. When planning production, batching orders together can lead to substantial savings. If you anticipate needing more parts in the future, ordering a larger quantity upfront can be more cost-effective than placing multiple small orders. Additionally, larger material orders often benefit from bulk pricing, and a professional cnc milling service can leverage their purchasing power to secure better material rates than an individual company could.
Time is money, and this is especially true in manufacturing. Most service providers offer multiple lead time options. Standard production cycles are the most cost-effective, as they allow the shop to schedule jobs efficiently and optimize machine utilization. Expedited delivery is almost always available but comes at a premium. This "expedite fee" covers the cost of interrupting the existing schedule, potentially running machines on overtime, and prioritizing your job over others. When evaluating quotes, carefully consider whether the need for speed justifies the additional expense.
Even with the best equipment and programmers, the physical act of cutting metal is subject to real-world physics. Understanding potential failure points and the methods used to verify quality is essential for ensuring your CNC Milling Parts meet their specifications every time.
Several technical challenges can compromise dimensional accuracy and part quality. A professional machine shop has processes in place to mitigate these risks.
Tool Deflection and Thermal Expansion: The forces of cutting can cause the tool to bend slightly, or "deflect," leading to features that are not perfectly straight or dimensionally accurate. Likewise, the heat generated during machining can cause both the tool and the workpiece to expand. Experienced machinists manage these effects by using rigid tooling, taking finishing passes, and employing high-quality coolant.
Inadequate Workholding: If the workpiece is not held securely, it can vibrate or even shift during the operation. This leads to poor surface finish, dimensional errors, and potentially scrapped parts. The use of robust, purpose-built fixtures is critical for maintaining stability.
Chatter: This is a harmful vibration that can occur between the cutting tool and the workpiece. It leaves a poor surface finish and can cause premature tool wear. It is controlled by optimizing speeds, feeds, and the depth of cut.

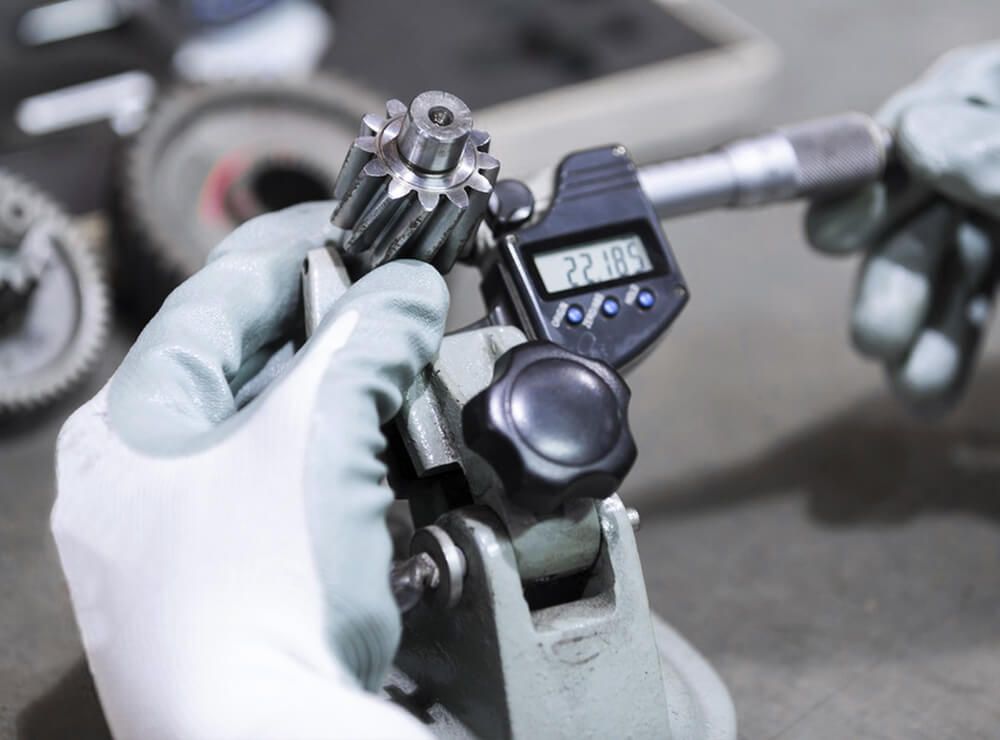

You cannot control what you cannot measure. Metrology—the science of measurement—is the backbone of quality control in precision manufacturing.
Coordinate Measuring Machines (CMM): For parts with complex geometries and tight tolerances, traditional tools like calipers and micrometers are insufficient. A CMM uses a highly sensitive probe to touch hundreds or thousands of points on a part's surface. It compares this data to the original CAD model to verify complex profiles, positional tolerances, and geometric features with sub-micron accuracy.
Material Certifications (Mill Test Reports): To ensure alloy integrity and traceability, especially for aerospace and medical applications, reputable providers will supply material certifications. A Mill Test Report (MTR) is a document from the material supplier that details the chemical composition and mechanical properties of the specific raw material batch used to make your parts.
A crucial step in de-risking a new production run is the First Article Inspection (FAI). Before launching into full-scale manufacturing, the provider will produce one part and perform a comprehensive inspection on every single dimension and feature noted on the engineering drawing. The FAI report is then sent to you for approval. This process confirms that the programming and setup are correct and that the process is capable of producing conforming parts. It provides a critical feedback loop, allowing for any necessary adjustments before committing to the full quantity, saving time and money.
Successful CNC milling is a sophisticated discipline that demands a balance of deep technical proficiency and smart strategic sourcing. The path from a digital model to a functional, high-precision component is paved with critical decisions about design, materials, and production methods. Mastering this process requires acknowledging that "using" a CNC machine is an entire workflow, not just a single action.
The core decision often boils down to a classic build-versus-buy scenario. For simple, low-volume projects where direct control is paramount, in-house operation can be a viable path. However, for complex, mission-critical CNC Milling Parts that require scale, advanced technology, and guaranteed quality, a professional service provides the necessary expertise and infrastructure without the burdensome overhead. The right partner acts as a force multiplier for your engineering team.
Your next step should be a practical audit. Review your current design requirements against the DFM principles outlined here. Then, engage a qualified service provider and request a comprehensive, DFM-focused quote. This will not only benchmark your production costs but also provide invaluable insight into optimizing your components for manufacturability and performance.
A: 3-axis milling operates on the X, Y, and Z linear axes, making it ideal for parts with simpler geometries where features are on a single plane. 5-axis milling adds two rotational axes, allowing the cutting tool to approach the workpiece from any direction. This enables the machining of highly complex shapes, undercuts, and contours in a single setup, which improves accuracy and reduces the need for multiple fixtures.
A: The best practice is to provide two files. First, a 3D model in a universal format like STEP or IGES. This file contains the part's precise geometry for CAM programming. Second, a 2D technical drawing (usually a PDF) that clearly indicates dimensions, critical tolerances, thread specifications, material type, and any required surface finishes or post-processing operations. This combination leaves no room for ambiguity.
A: Lead times vary based on complexity, quantity, and shop capacity. For rapid prototyping of a few parts, lead times can be as short as 3-5 business days. For standard production runs, a typical lead time is 2-4 weeks. High-volume orders or parts requiring special materials or extensive post-processing may take longer. Most providers offer expedited options for an additional fee.
A: An "as-machined" finish from CNC milling can be very fine (down to 16 Ra or better), but it will not be a true mirror polish. A mirror-like finish (below 4 Ra) requires secondary post-machining operations. These typically involve processes like lapping, buffing, or electropolishing to smooth the surface at a microscopic level after the primary milling is complete.
A: Material choice impacts cost in two main ways. First is the raw material price itself, where exotic alloys or high-performance plastics are more expensive than common aluminum or steel. Second is machinability. Harder, tougher materials require slower cutting speeds, generate more heat, and cause faster tool wear. This increases the machine time required per part and the cost of consumable tooling, directly driving up the final price.
