Milling serves as the absolute backbone of subtractive manufacturing, turning raw blocks of metal into precision components. However, the term "milling machine" presents a definition paradox. It is an umbrella term that covers an immense range of hardware, from small desktop prototyping units to room-sized industrial gantries capable of machining ship engine blocks. For manufacturers and procurement officers, this variety creates a complex decision matrix.
The business context of this choice cannot be overstated. Selecting the correct machine architecture directly determines your production throughput, the quality of your surface finishes, and ultimately, your unit cost. A machine perfect for repair work may bankrupt a high-volume production line due to inefficiency. Conversely, an industrial center is overkill for simple tooling adjustments.
This guide moves beyond basic dictionary definitions. We will compare hardware based on axis configuration, control systems, and ROI suitability. You will learn how to align specific machine types with your production needs, ensuring you choose the right method for manufacturing CNC Milling Parts efficiently.
Orientation Matters: Vertical mills favor versatility and visibility; horizontal mills dominate high-volume chip removal and deep slotting.

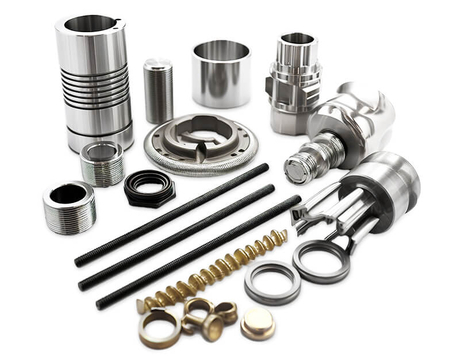

Control Hierarchy: Manual mills remain viable for repair work/tooling; CNC is mandatory for scalable "custom CNC milling parts" production.
Structural Rigidity: Bed-type mills offer superior rigidity for heavy cuts compared to knee-type mills, which prioritize flexibility.
Infrastructure Impact: Power requirements (3-phase vs. single-phase) and footprint often dictate the feasible options for small-to-mid-sized shops.
The first decision node in selecting hardware involves the orientation of the spindle. This choice dictates how the cutting tool approaches the workpiece. It fundamentally changes how you must fixture parts and how the machine handles chip evacuation. When you evaluate Milling Machines, you are primarily choosing between vertical and horizontal architectures based on part geometry.
In a Vertical Milling Machine (VMM), the spindle axis is oriented vertically. The cutter stays in a vertical position while the table moves across the X, Y, and Z axes to position the workpiece. This is the most common configuration found in machine shops globally due to its intuitive nature.
Ideal Use Case:
VMMs are the standard for plunge cuts, drilling, and general finishing work. Because the spindle is above the workpiece, operator visibility is paramount. You can easily see the cut in progress, making it ideal for prototyping or low-volume runs where monitoring is critical.
Pros:
Lower Cost of Entry: Generally cheaper to purchase than horizontal equivalents.
Footprint: Takes up less floor space, making it easier to fit into smaller facilities.
Ease of Use: Operators find setup and monitoring intuitive since the work is right in front of them.
Cons:
Chip Evacuation: Gravity works against you. Chips tend to accumulate inside deep pockets or holes. This requires manual clearing or high-pressure coolant systems to prevent recutting chips, which can damage the surface finish.
Speed Limits: Due to chip buildup, deep cavity work often requires slower feed rates.
Horizontal Milling Machines (HMM) feature a spindle mounted horizontally, parallel to the shop floor. These machines often utilize an arbor support to hold the cutting tool. While they may look more intimidating to a novice, they are workhorses for high-volume production.
Ideal Use Case:
HMMs excel at heavy material removal and slotting. They are particularly famous for "Gang Milling," a process where multiple cutters are mounted on a single arbor. This allows the machine to cut several slots or surfaces simultaneously, drastically reducing cycle time.
Pros:
Superior Chip Evacuation: Gravity is an ally here. Chips naturally fall away from the cut, keeping the workpiece clean. This allows for faster speeds and longer tool life.
Rigidity: The arbor support provides immense stiffness, allowing for heavier cuts with better surface finishes.
Cons:
Capital Investment: These machines typically command a higher initial price tag.
Complexity: The setup can be more difficult because the operator often has blind spots during the cutting process.
The Universal Milling Machine acts as a hybrid architecture. It shares similarities with horizontal mills but adds a critical feature: the worktable can swivel, typically up to 45 degrees. This swiveling action allows for helical milling.
The "Repair Shop" Standard:
You will often find these in toolrooms or maintenance departments. They are essential for manufacturing spiral gears, drill bits, or complex non-linear cuts without investing in a full 5-axis setup. While they lack the production speed of a dedicated HMM, their flexibility makes them indispensable for repair operations.
Once you decide on orientation, the next variable is construction. This decision node balances precision requirements against workpiece weight. The physical structure of the machine determines how much vibration it can dampen and how heavy a part it can hold.
The Knee-Type mill is perhaps the most iconic image of a manual milling machine, often referred to generically as a "Bridgeport."
Anatomy: The defining feature is the "knee," a vertical casting that supports the saddle and worktable. This knee moves up and down the column to adjust the Z-axis.
Limitation: Rigidity is the main drawback. As the knee lowers to accommodate taller parts, the center of gravity shifts away from the column. This can introduce vibration or "chatter" during heavy cuts.
Best For: These are perfect for light-to-medium duty work, prototyping, and Maintenance Repair Operations (MRO). They offer incredible flexibility for diverse, small parts but struggle with heavy hogging.
Bed-Type mills solve the rigidity issues inherent in knee mills. In this configuration, the worktable sits directly on a massive, fixed bed. The table moves only in the X and Y axes, while the spindle head itself moves vertically to handle the Z-axis.
The Rigidity Advantage:
By eliminating the moving knee, these machines eliminate "knee wobble." The solid bed foundation allows for much heavier cutting loads and significantly larger workpieces. If you are ordering heavy-duty custom CNC Milling Parts, they are likely processed on a machine with this architecture to ensure dimensional accuracy.
Sub-types:
Simplex: Features a single spindle.
Duplex: Features two opposing spindles. This allows the machine to machine two sides of a block simultaneously, doubling efficiency for squaring operations.
Triplex: Utilizes three spindles for multi-face processing in a single setup.
| Feature | Knee-Type Mill | Bed-Type Mill |
|---|---|---|
| Z-Axis Movement | Table (Knee) moves up/down | Spindle Head moves up/down |
| Rigidity | Moderate (decreases as knee lowers) | High (constant support) |
| Workpiece Weight | Limited (approx. 500-1000 lbs) | High (can handle tons) |
| Primary Application | Toolroom, Repair, Prototyping | Production, Heavy Manufacturing |
When the components become massive—think aerospace bulkheads or ship engine blocks—standard bed mills are no longer sufficient. This is where Planer-Style and Gantry Mills enter the equation.
Configuration:
These machines resemble a planer. The milling head travels over a massive stationary or slow-moving workpiece. In Gantry styles, a bridge structure straddles the table and moves along the X-axis.
Application:
These are essential when the workpiece is simply too heavy for a moving table to position accurately. Moving a 20-ton part rapidly back and forth is mechanically inefficient; moving the lighter tool head over the static part is far more precise.
The distinction between manual and computer-controlled operation is the most significant factor regarding production volume and complexity. This decision node balances the volume of parts, the geometric complexity, and the skill gap in the workforce.
Manual machines rely entirely on operator skill. The machinist turns handwheels to control feed rates and cutting paths. They judge the sound of the cut and feel the vibration to adjust parameters.
ROI Context: For a "quantity of one," manual milling is often cheaper. There is zero programming time. A skilled machinist can walk up to a manual mill and face a block in the time it takes a CNC programmer to boot up their software.
Cost Factor: Acquisition costs are low. You can find used manual mills for $10,000–$20,000. However, the operational labor cost is high because one operator can only run one machine at a time.
Add-on Tech: It is crucial to mention DRO (Digital Readout) systems. These digital displays bridge the gap, offering precise coordinate tracking to improve manual accuracy without full automation.
CNC technology is the mandatory standard for any scalable CNC Milling service. These machines use G-code to execute precise movements without human intervention during the cut.
The Standard for Service: If you need complex geometries, 3D contouring, or unattended operation, manual machining is impossible. CNC is required for consistency.
Configurations:
3-Axis: The standard X/Y/Z movement. Suitable for most flat or prismatic parts.
Multi-Axis (4-Axis/5-Axis): These allow the tool or the part to rotate. This enables the machining of complex undercuts and drastically reduces setup changes (re-fixturing), which improves accuracy.
Cost vs. Outcome: The High CapEx ($50k–$500k+) is offset by low per-unit labor costs. One operator can tend to multiple CNC machines simultaneously, ensuring extreme repeatability for custom parts.
Beyond the standard categories, niche applications and tooling compatibility often drive the purchasing decision. Understanding these nuances ensures your equipment matches specific industry standards.
This is a legacy technology that uses a physical stylus to trace a master model. As the stylus moves over the master shape, the cutting tool mimics the path on the workpiece. While modern status renders this largely obsolete—replaced by CNC profiling—you may still find these in vintage die-sinking operations or specialized restoration shops where digital CAD data does not exist.
A milling machine is only as good as the grip of its tool holder. The interface between the spindle and the tool holder dictates rigidity and balance at high speeds.
CAT (V-Flange): This is the US Standard. It is robust and excellent for heavy milling operations where torque transfer is critical.
BT: This standard features a symmetric design. It is generally better suited for high-speed balance and is common in machines imported from Asia.
HSK: This uses a hollow shank design. Unlike the others, HSK holders expand as RPM increases, creating a tighter grip inside the spindle. This is essential for high-precision aerospace work and high-speed machining.
Finally, businesses must evaluate the Total Cost of Ownership (TCO) versus supply chain flexibility. Just because you need milled parts does not mean you need to own the machines.
Purchasing your own hardware makes sense when volume is consistent. If internal demand is stable, the depreciation and CapEx are justified. Furthermore, buying is necessary for IP protection when you need to keep proprietary prototype designs strictly in-house. It also allows for rapid turnaround on emergency repairs.
Infrastructure Checklist:
Power: Does the facility have 3-phase power? Industrial mills require this for smooth motor operation. If you only have single-phase power, you will need a Phase Converter, which adds cost and complexity.
Floor Load: Can your concrete slab support the weight of a heavy Bed Mill? Foundation failure is a massive, hidden cost of installation.
Outsourcing becomes the strategic choice during complexity spikes. If a project requires 5-axis simultaneity that your 3-axis internal shop cannot handle, outsourcing is the only viable path. Similarly, material constraints play a role. Machining exotic alloys like Inconel or Titanium requires specialized stiffness and tooling that general shops often lack.
Ultimately, utilizing an external CNC Milling service converts fixed costs into variable costs. This reduces your financial risk during demand fluctuations and allows you to scale production up or down instantly without worrying about idle machinery.
The "best" milling machine is not a single static answer; it is a function of your workpiece envelope, material hardness, and required production volume. A vertical knee mill might be the perfect solution for a repair shop, while it would be a bottleneck in a high-volume production facility.
While manual Knee Mills serve as the training ground for machinists, industrial profitability lies in choosing the correct CNC architecture. Whether you invest in Vertical or Horizontal mills depends on your chip evacuation needs and part geometry. Alternatively, leveraging a specialized partner for custom CNC Milling Parts can bypass the heavy capital investment entirely.
We encourage you to audit your current part geometry mix. Analyze your average batch sizes and tolerance requirements before committing to a specific machine type. Making the right architectural choice now will safeguard your production efficiency for years to come.
A: The primary difference lies in the spindle orientation. In a vertical mill, the spindle is upright, which is better for operator visibility and versatility in plunging cuts. In a horizontal mill, the spindle is parallel to the floor. This orientation is superior for heavy chip removal and deep slotting because gravity helps chips fall away from the workpiece, preventing recutting.
A: For most general custom parts, a 3-axis Vertical CNC Mill is the industry workhorse due to its flexibility and lower cost. However, for complex parts requiring machining on multiple sides or intricate contours, a 5-axis CNC Mill is superior. It reduces setup time and error by allowing the tool to access five sides of the part in a single clamping.
A: The knee is the substantial vertical casting that supports the saddle and the worktable. On manual knee mills, this component moves up and down the main column to adjust the Z-axis (cut depth). While versatile, the knee is generally less rigid than "Bed-type" equivalents, making it less suitable for extremely heavy cuts.
A: Costs vary significantly based on capabilities. A used manual mill can range from $10,000 to $20,000. In contrast, new industrial CNC machining centers typically range from $60,000 for basic models to over $500,000 for advanced 5-axis systems or large horizontal mills. The price depends heavily on the number of axes, size, and precision grades.
A: Industrial milling motors require 3-phase power to deliver consistent torque and smooth operation, which directly impacts surface finish quality. Single-phase power often causes vibration and lower efficiency. Shops without 3-phase infrastructure must use Phase Converters to run these machines, which is an important consideration for installation costs.
