Selecting a surface finish goes far beyond making a component look visually appealing. It remains a critical engineering decision. This choice determines a part's functional lifespan, environmental resilience, and final assembly fit. You cannot leave finishing decisions until the very end. Late-stage errors often ruin perfectly machined precision components. Unplanned coating thickness can prevent parts from mating. Incompatible chemical prep can destroy intricate surface details. Such mistakes easily turn high-quality hardware into unusable scrap.
You must align post-processing methods early in the design cycle. This approach saves time and ensures consistent manufacturing yields. This article provides an evidence-based framework for engineers and procurement teams. You will learn to evaluate, shortlist, and specify the correct post-processing options. We focus purely on performance outcomes and implementation realities. We will explore key finishing categories, navigate dimensional risks, and match substrates to advanced coatings. You will gain actionable insights to improve your component designs immediately.
Form vs. Function: Finishing must align with specific operational threats (wear, galvanic corrosion, chemical exposure) before aesthetic requirements.
Tolerance Shifts: Additive finishes (like plating and powder coating) alter dimensional accuracy; CAD models and pre-machining tolerances must account for coating build-up.
Material Compatibility: Not all alloys accept finishes equally; specifying the right substrate-finish pairing is critical for adhesion and longevity.
Compliance Matters: Navigating RoHS, REACH, and industry-specific regulations is mandatory when evaluating finishing vendors.
Engineers must move past the simple desire for a part to look good. We need to establish measurable success criteria. Visual appeal rarely dictates mechanical reliability in harsh environments. You should define exact performance targets before selecting any coating. Consider specifying parameters like hours passed in a salt spray test. You might also measure durability using Taber abrasion resistance cycles. Electrical conductivity requirements often dictate specific plating choices as well. Setting these measurable baselines ensures the finish performs its intended mechanical duty.
The operating environment directly dictates component survival. You must evaluate the thermal fluctuations the part will experience. Extreme temperature swings can cause rigid coatings to crack or delaminate. UV exposure degrades certain organic finishes rapidly. Chemical interactions pose another significant threat. A component submerged in hydraulic fluid requires entirely different protection than one exposed to salt water. Assessing these environmental variables helps you eliminate incompatible options early in the design phase.
Balancing production yields against advanced coating application represents a major engineering challenge. High-performance coatings deliver exceptional protection. However, they demand strict process controls. Standard mechanical finishes offer simpler execution and reliable batch consistency. You must evaluate this cost-to-benefit ratio carefully across different production volumes. Low-volume runs might justify complex hybrid finishes. High-volume manufacturing often favors uniform, highly repeatable processes. Optimizing this balance ensures reliable output without compromising functional integrity.
When engineering custom metal parts, categorizing your options simplifies the specification process. We generally divide post-processing into subtractive mechanical finishes and additive conversion coatings. Each category serves a distinct functional purpose.

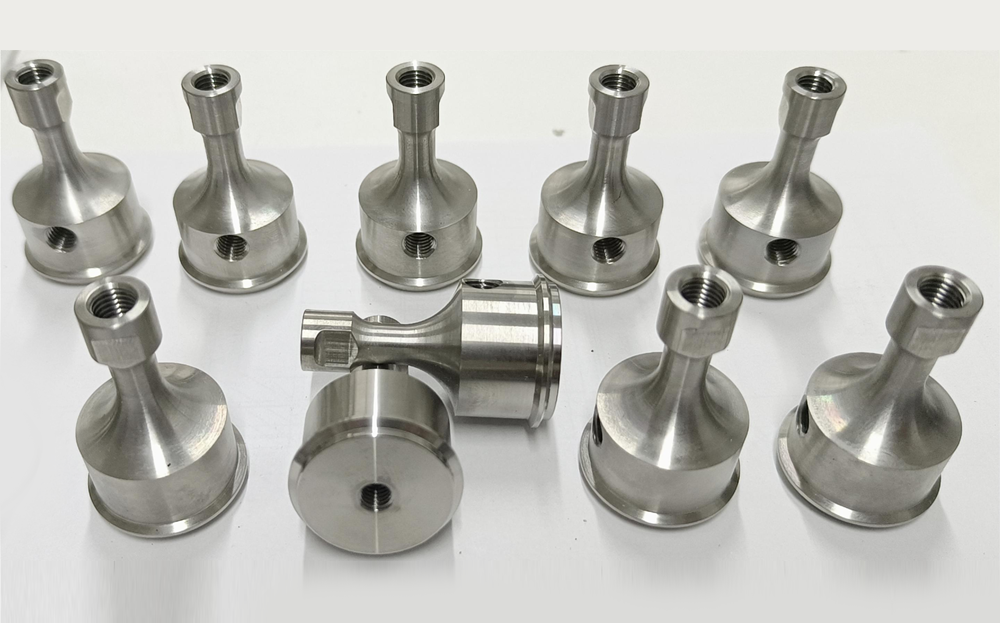

The "as-machined" state serves as our baseline standard. Standard CNC milling and turning produce specific surface profiles. You can expect realistic Roughness Average (Ra) values ranging from 3.2 µm to 1.6 µm. High-speed precision finishing passes can achieve Ra 0.8 µm. Leaving a part as-machined offers maximum dimensional predictability. No external layers alter the final geometry. However, tool marks remain visible. Bare metal remains vulnerable to environmental oxidation.
Bead blasting and tumbling remove these residual tool marks effectively. These methods achieve a uniform matte texture across the entire component. They also help relieve minor surface stresses. However, subtractive finishing carries inherent geometrical risks. Aggressive tumbling can cause unwanted edge rounding. This effect easily damages high-precision mating surfaces or sharp sealing edges. You must specify masking for critical dimensions or restrict tumbling durations to protect intricate features.
Anodizing primarily benefits aluminum substrates. Engineers must distinguish between Type II and Type III processes. Type II provides cosmetic color options and mild environmental protection. Type III Hardcoat delivers exceptional wear resistance. It penetrates the substrate while simultaneously building an outer layer. Type III also offers excellent dielectric properties. It serves as a robust electrical insulator in dense assemblies.
Plating includes both electrolytic and electroless methods. Electrolytic plating uses an electrical current to deposit materials like zinc or hard chrome. This method creates a line-of-sight deposit. Outer edges receive more material than recessed areas. Electroless plating relies on a chemical auto-catalytic reaction. It deposits a perfectly uniform thickness across all complex geometries. Electroless nickel excels at coating deep blind holes perfectly.
Powder coating provides a highly durable, impact-resistant aesthetic layer. Manufacturers apply dry powder electrostatically and cure it under heat. You must account for the significant thickness it adds. Powder coating typically builds 50 to 100 microns per surface. This massive layer easily ruins fine machine threads. It also misaligns tight-tolerance mating surfaces. You must plan extensive masking operations when specifying this finish.
Finish Type | Typical Thickness Added | Primary Benefit | Common Drawback |
|---|---|---|---|
As-Machined | 0 microns | Exact dimensional accuracy | No corrosion protection |
Type III Anodizing | 25 - 50 microns (half penetrates) | Extreme wear resistance | Low aesthetic color variation |
Electroless Nickel | 2 - 25 microns | Uniform coating on complex shapes | Strict chemical prep required |
Powder Coating | 50 - 100+ microns | High impact durability | Ruins threads without masking |
Many engineers fall into the thickness trap. Additive coatings change geometry significantly. You must calculate these changes diametrically. A 10-micron plating layer applied to a shaft increases its total diameter by 20 microns. Conversely, the same 10-micron layer reduces an internal hole diameter by 20 microns. Overlooking this basic math causes immense frustration during final assembly. Shafts will not clear bearings. Dowel pins will bind in their locating holes.
Strategic masking provides a necessary workaround. You mask critical mating surfaces to keep them bare. You plug tapped holes to maintain thread pitch diameters. You cover conductive contact points to ensure electrical grounding. However, you must understand the implementation realities. Masking remains a highly manual, labor-intensive process. Technicians apply tapes and custom silicone plugs by hand. Extensive masking slows down lead times and introduces human error risks.
Implementing Design for Manufacturing (DFM) adjustments prevents these bottlenecks completely. Here are best practices for communicating pre-plating dimensions:
Adjust CAD Models Early: Undersize shafts and oversize holes in your original CAD files to accommodate the exact planned coating thickness.
Use Clear Callouts: Specify on 2D drawings whether the stated dimensions apply "before plating" or "after plating."
Limit Masking Needs: Redesign components to minimize the number of critical bare surfaces required.
Consult Finishing Vendors: Request maximum thickness tolerance data from your vendor before finalizing standard thread callouts.
Specifying a successful finish requires deep metallurgical knowledge. You must understand the base alloy's unique properties. Carbon content dictates how a metal reacts to chemical etching. Existing corrosion resistance levels determine if you even need an additive layer. Matching the correct substrate to the right chemical solution ensures proper adhesion. Poor pairings lead to immediate delamination under stress.
Let us examine Nickel-Plated Cr12MoV Measuring Components. Cr12MoV is a high-carbon, high-chromium tool steel. It offers exceptional dimensional stability. Metrology equipment demands this rigidity to maintain strict micro-tolerances. However, this specific steel remains susceptible to surface rust in humid environments. Rust immediately ruins measurement accuracy. The engineering solution involves applying a highly uniform electroless nickel plating layer. This specific coating provides absolute corrosion resistance. Because it deposits uniformly, it never distorts the crucial metrology dimensions.
Now consider the structural demands placed on Ni-Plated 40Cr Automotive Fixtures. Modern assembly lines rely on these heavy-duty jigs. The 40Cr alloy steel delivers incredible toughness. It handles repetitive impact and exhibits excellent fatigue strength. Unfortunately, raw 40Cr degrades quickly when exposed to harsh shop-floor chemicals. Repetitive mechanical wear also degrades raw surfaces. Nickel plating safeguards these vital fixtures perfectly. The slick, hard nickel layer resists chemical spills and reduces friction. This specific pairing ensures long-term reliability and precise alignment over thousands of production cycles.
Selecting a capable finishing partner defines project success. You must verify their internal process controls rigorously. Do not accept visual inspections alone. Request empirical quality assurance documentation. Reliable vendors utilize X-ray Fluorescence (XRF) testing equipment. XRF guarantees exact coating thickness down to the micron level. You should also demand cross-hatch adhesion testing reports. This destructive test proves the coating bonded correctly to the substrate.
Navigating supply chain risks requires strategic vendor alignment. You must evaluate the benefits of choosing a unified manufacturer. A partner handling both CNC machining and in-house finishing removes major friction points. Unified facilities eliminate transit delays. They also assume full accountability for final dimensions. Utilizing third-party finishing subcontractors increases lead times. It often creates finger-pointing disputes if parts fall out of tolerance post-plating.
Regulatory compliance remains strictly mandatory. You cannot ignore global environmental standards. Hexavalent chromium, once an industry standard, faces severe restrictions globally. Ensure your finishing partner utilizes compliant trivalent replacements. Processes must adhere strictly to RoHS (Restriction of Hazardous Substances) and REACH directives. Aerospace and automotive sectors enforce even stricter baseline standards. Auditing a vendor's compliance certifications protects your final product from customs rejections and market bans.
Verify XRF thickness testing capabilities.
Request documented adhesion test results.
Prioritize unified machining and finishing facilities.
Audit RoHS and REACH compliance certificates.
Successful surface finishing demands a holistic engineering approach. You must view the base material, the CAD tolerances, and the post-processing method as one integrated system. Isolating these decisions leads to assembly failures and degraded component lifespans. We must prioritize measurable operational outcomes over simple aesthetics. Accounting for thickness variations ensures seamless final assembly.
Your next steps require proactive communication. Push beyond standard, vague callouts on your 2D drawings. Define exact performance metrics. We strongly encourage you to consult a DFM specialist early. Upload your 3D CAD files for a comprehensive manufacturability review before finalizing the design. Catching a tolerance conflict now prevents costly scrap on the production floor later.
Integrate finishing thickness into early CAD tolerance calculations.
Match the coating type directly to defined environmental threats.
Specify "after plating" dimensional requirements clearly on drawings.
Audit finishing partners for strict QA and RoHS compliance.
Request early DFM feedback to eliminate extensive masking needs.
A: Ra stands for Roughness Average. It calculates the average height deviations of a surface profile from a mean line. Engineers use Ra as the standard general measurement for machined parts. Rz measures the vertical distance between the highest peak and the deepest valley within a specific sampling length. Rz provides a better indicator of extreme surface defects.
A: Masking increases finishing expenses significantly. The process remains highly manual. Technicians must apply tapes and insert custom plugs by hand. For low-volume production runs, complex masking requirements can easily double the total finishing cost. Redesigning parts to minimize critical bare surfaces offers the best financial workaround.
A: Yes, applying multiple finishes is technically possible. However, hybrid processes are highly complex and expensive. For example, hard anodizing specific areas while masking others for electrical grounding requires multiple preparation stages. The risk of chemical bleeding between zones increases defect rates. Avoid hybrid finishes unless functionally mandatory.
A: Electrolytic plating suffers from the "dog-bone" effect. Electrical current concentrates heavily on sharp outer edges and corners. This draws more plating material to those areas, causing localized build-up. To solve this, engineers add chamfers or radii to sharp edges. Switching to electroless plating also eliminates this issue entirely.
