Machining plastics presents fundamentally different challenges than cutting metals. You must actively manage thermal expansion, internal stress, and tool deflection. Ignoring these factors leads to immediate dimensional failure. Standard metal-cutting strategies simply do not apply to polymers. Engineers and procurement managers face a specific core problem. You need to transition a functional digital design into a scalable, precise manufactured part. This transition requires careful planning to prevent high scrap rates and wasted resources.
We will explore how to achieve high-yield production of CNC plastic parts by focusing on strict design rules. You will discover how aligning material properties with specific manufacturing parameters mitigates shop-floor risks. We also outline how to evaluate and select a reliable manufacturing partner. Proper vendor selection ensures your designs translate perfectly into physical components.
Material Behavior Dictates Design: Plastics have a higher Coefficient of Thermal Expansion (CTE) than metals; applying standard metal tolerances will drive up costs and lead to part failure.
DFM Non-Negotiables: Consistent wall thickness and generous internal radii are critical to preventing warping and material stress during machining.
Advanced Material Matching: Specifying PEEK CNC plastic parts or PTFE CNC plastic parts solves extreme thermal and chemical challenges but requires specialized machining environments and tooling.
Cost-Precision Balance: Over-tolerancing is the primary driver of wasted budget in custom plastic machining.

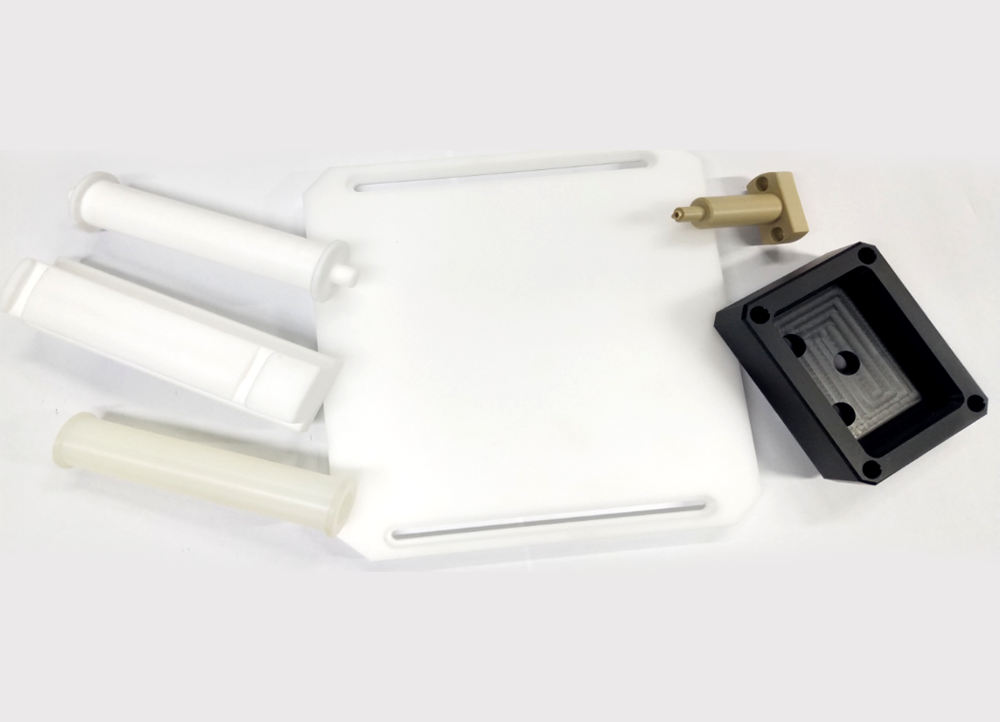

You must evaluate why CNC machining outshines injection molding or 3D printing for specific projects. Injection molding requires massive upfront investments in hard tooling. It makes sense for millions of units but fails for smaller batches. CNC machining skips these expensive tooling steps entirely. You can iterate designs rapidly. You simply update a CAD file and send it to the machine. 3D printing offers quick prototyping but lacks structural integrity. Printed layers often delaminate under physical stress. Machining a solid block of polymer provides superior mechanical properties. It delivers a solid, isotropic component ready for rigorous field testing.
Defining a successful manufactured part requires clear success criteria. A successful component maintains dimensional stability over a long period. It must not warp after leaving the machine spindle. It shows no surface scoring or chatter marks from poor tool engagement. Furthermore, a successful part adheres strictly to required compliance standards. If you design medical devices, the material must pass FDA requirements. If you design aerospace components, the part must meet stringent flammability and outgassing standards. You achieve these criteria by focusing heavily on upfront design optimization. Optimizing your CAD files early reduces scrap rates drastically. It shortens the total machining time. You save valuable engineering hours and speed up product delivery.
Choose CNC machining for low-to-medium volume production runs.
Use machining when mechanical strength is a top priority.
Validate designs via CNC before investing in injection mold tooling.
Selecting the correct polymer dictates the entire manufacturing strategy. We group materials by their intended business outcomes. Some projects require massive structural integrity. Others demand absolute chemical resistance. Understanding these categories helps you make accurate engineering decisions.
Material Category | Common Polymers | Key Strengths | Machining Challenges |
|---|---|---|---|
High-Performance | PEEK, PTFE, Ultem | Extreme heat & chemical resistance | High raw cost, localized melting risks |
Standard Machinable | Delrin (POM), Nylon, ABS | High machinability, cost-efficient | Moisture absorption, stress cracking |
Engineers evaluate PEEK CNC plastic parts for aerospace and medical applications. PEEK offers incredible tensile strength. It boasts remarkable heat resistance. It withstands repeated sterilization cycles. However, the raw material cost runs exceptionally high. You must use precise tool pathing during manufacturing. Poor tool paths cause localized melting. Heat builds up quickly and ruins the part finish. PEEK requires sharp tools and strict feed rate control.
You should evaluate PTFE CNC plastic parts for low-friction and chemical handling applications. PTFE handles aggressive chemicals perfectly. It features one of the lowest coefficients of friction available. However, PTFE is extremely soft. It becomes highly prone to deformation under standard clamping pressure. You cannot hold it in standard vise jaws without crushing it. Machining PTFE requires specialized soft jaws and careful workholding strategies. It demands an experienced operator to achieve tight dimensions without distorting the raw stock.
Delrin, also known as POM or Acetal, serves as the baseline for standard plastics. It provides high machinability. It produces clean chips and smooth surface finishes. Delrin offers excellent dimensional stability. It rarely warps when cut correctly. You should use Delrin for gears, bearings, and structural brackets. It represents the safest choice for general engineering applications.
Polycarbonate and Nylon present different challenges. Nylon features excellent wear resistance. It acts as a great bearing surface. However, Nylon carries severe moisture absorption risks. It swells in high humidity. A part machined perfectly today might fail a dimensional inspection tomorrow if the environment changes. Polycarbonate offers high impact strength. It stays transparent in many applications. Yet, Polycarbonate faces stress-cracking risks during the machining process. Using the wrong coolant or aggressive tool feeds causes micro-fractures. You must manage environmental controls and coolant chemistry carefully when cutting these two polymers.
You must translate your design features directly into machining outcomes. Design for Manufacturability (DFM) rules dictate how successfully a part comes off the machine. Ignoring these rules forces operators to slow down. It increases scrap and extends delivery times.
You must maintain a safe minimum wall thickness. Rule of thumb dictates a minimum wall thickness of 0.040" to 0.060". This depends entirely on the specific plastic. Thin walls invite vibration. As the cutting tool presses against a thin plastic wall, the material deflects away. This tool deflection causes poor surface finishes and inaccurate dimensions. Rigid plastics like PEEK tolerate slightly thinner walls than soft plastics like PTFE.
You must also limit cavity depth. A strict rule limits cavity depth to four times the tool width. Deep cavities prevent proper chip evacuation. Plastic chips expand as they heat up. If chips cannot escape a deep pocket, they melt. The melted plastic re-welds to the part. It wraps around the cutting tool and causes catastrophic failure. Keeping pockets shallow ensures chips flow freely out of the cutting zone.
You must avoid sharp internal corners at all costs. Sharp corners require tiny cutting tools. Tiny tools break easily and force incredibly slow feed rates. Instead, specify a generous corner radius. Make the internal radius slightly larger than the tool radius. Add roughly 20% to the standard tool radius. For example, if you expect the shop to use a 0.250" end mill, specify a 0.150" corner radius. This prevents the tool from burying itself into a sharp 90-degree corner. It prevents sudden spikes in cutting pressure. It eliminates stress concentrations in the plastic. This simple change reduces machining time dramatically.
Do not copy-paste metal tolerances onto your plastic drawings. Applying a +/- 0.001" tolerance across an entire plastic part guarantees failure. Plastics expand and contract significantly with temperature changes. They absorb moisture from the air. A part measured perfectly in a warm machine shop will shrink when shipped in a cold truck.
Apply standard commercial tolerances for plastics at +/- 0.005".
Specify tighter tolerances only on critical mating surfaces.
Leave non-critical features open to standard tolerances.
Include notes on the drawing specifying the measuring temperature.
Managing tolerances wisely controls your manufacturing budget. Tighter tolerances require climate-controlled inspection rooms. They demand slower cutting speeds. They force the shop to scrap more parts. You only pay for extreme precision where the design truly demands it.
We must address the physical realities of the shop floor. These realities directly impact your final product. Designing a perfect CAD model means nothing if the material behaves unpredictably during cutting. You need to understand how heat and stress manipulate polymers.
Plastics act as powerful thermal insulators. Unlike aluminum, they do not conduct heat away from the cutting zone. The heat remains trapped right at the cutting edge of the tool. If the temperature rises too high, the plastic simply melts. Melted plastic gums up the flutes of the end mill. It destroys the surface finish.
Detailing a proper coolant strategy becomes essential. Shops use directed air blasts to blow chips out of the way and cool the tool. They also use non-reactive liquid coolants. The tooling itself matters heavily. You must use sharp, high-rake-angle tools. These tools shear the plastic cleanly rather than rubbing against it. Rubbing generates friction. Friction generates melting. Sharp tools minimize friction and keep the cutting zone cool.
Asymmetrical material removal causes parts to warp. Plastics often contain built-in stresses from their initial extrusion process. When you machine away a large volume of material from only one side, you release that stress unevenly. The remaining material pulls against itself. The part bows like a banana. You often see this when facing a large flat plate of Delrin or Nylon.
You can mitigate these internal stresses through a specific thermal cycle. We introduce the concept of pre-machining and post-machining annealing. Annealing involves heating the plastic in an oven to a specific temperature. You then cool it down extremely slowly over many hours. This process relaxes the polymer chains. It relieves the internal stress without changing the physical shape.
To consistently manufacture tight-tolerance Custom CNC plastic parts, annealing serves as a mandatory step. Shops rough out the part, leaving a small amount of extra material. They anneal the roughed part to relieve stress. Then, they place it back in the machine for the final finishing passes. This guarantees the part stays flat and dimensionally stable long after it ships to your facility.
You need a reliable method to vet vendors beyond comparing initial quotes. A low quote often hides a lack of expertise. You must look for trust, authoritativeness, and a deep understanding of polymer science. Ask specific questions about their facilities and methodologies.
You must ask if they use climate-controlled facilities. Temperature control remains crucial for measuring plastic parts accurately. The Coefficient of Thermal Expansion (CTE) in plastics far exceeds metals. A fluctuation of ten degrees on the shop floor changes the dimensions of a large plastic part. A trustworthy vendor controls their shop environment tightly. Their quality inspection room must maintain a strict, stable temperature. If they measure parts in a hot environment, those parts will fail your incoming inspection.
You must investigate their tooling strategies. Do they use plastic-specific tooling? An experienced shop uses dedicated end-mills for plastics. These tools feature highly polished flutes. Polished flutes prevent soft plastic chips from sticking to the tool. They employ specific cutting geometries designed to shear soft materials. They absolutely do not use the same end-mills they just used to cut stainless steel or aluminum. Sharing tools transfers dull edges and metal chips into your clean plastic components.
A trustworthy vendor pushes back on your designs. They provide aggressive DFM feedback. If they see overly tight tolerances, they challenge them. They explain the environmental physics preventing those tolerances. They suggest design modifications before producing a single chip. A vendor who blindly accepts a +/- 0.001" tolerance on a PTFE part lacks the experience to know it will fail. You want a partner who acts as an engineering consultant. They should highlight risky wall thicknesses. They should identify impossible corner radii. This proactive communication saves you from costly redesigns.
Precision plastic machining relies on matching the correct polymer to specialized DFM rules. You cannot treat plastics like metals. You must manage thermal expansion actively. You must control internal material stresses through processes like annealing. Generous internal radii and cautious cavity depths prevent catastrophic tool failures. Wise tolerance management keeps your projects on budget and on schedule.
Take time to audit your current CAD files against the DFM guidelines detailed above. Look for sharp internal corners. Check your wall thicknesses. Review your tolerance callouts. Removing unnecessary tight tolerances will improve your yield immediately. Next, prompt your engineering team to upload your 3D models for a comprehensive DFM review. Secure an automated quote from a platform demonstrating proven expertise in handling complex polymers. Choose a partner equipped with climate-controlled facilities and dedicated plastic tooling.
A: Delrin (Acetal) serves as the best baseline for standard applications. It machines cleanly, produces minimal burrs, and holds dimensions exceptionally well. For high-temperature environments, specify Ultem or PEEK. These advanced materials maintain mechanical stability and strict tolerances under extreme thermal and chemical conditions.
A: Warping occurs due to unrelieved internal material stress. It also happens from excessive heat generation during aggressive machining. Asymmetrical material removal releases internal stresses unevenly, causing the part to bow. You prevent this by using slow feed rates, sharp tooling, and proper thermal annealing cycles.
A: Yes, you can achieve extremely tight tolerances on specific features. However, it requires strict environmental temperature controls, specialized tooling, and intermediate stress-relieving annealing. This significantly increases machining time and costs. You should avoid applying blanket tight tolerances across the entire part.
