Selecting an inadequate machining partner during early-stage development introduces compounding risks that extend far beyond initial delays. A poorly executed prototype often yields false-negative test results, forcing engineering teams into unnecessary design iterations. These delays consume engineering hours and create severe downstream production bottlenecks. When a prototype fails due to poor machining rather than flawed design, you lose critical time-to-market advantages.
Prototyping demands a fundamentally different supplier profile than high-volume production. High-volume manufacturing prioritizes steady-state efficiency. Prototyping requires extreme agility, strict adherence to tight tolerances, and proactive Design for Manufacturability (DFM) feedback. You need a partner who can interpret design intent, flag unmanufacturable features, and deliver functional parts that perform exactly like final production units.
To mitigate risks, engineering teams must deploy a structured evaluation framework for auditing and shortlisting machining partners. This guide provides the technical criteria necessary to select a supplier capable of delivering reliable prototypes while facilitating a seamless transition to low-volume production.
Align supplier capabilities directly with the specific prototype phase (e.g., proof-of-concept vs. functional testing in end-use environments).
Verify material traceability, internal metrology capabilities, and relevant Quality Management System (QMS) certifications before issuing POs, particularly for highly regulated industries (medical, aerospace).
Prioritize suppliers that offer concurrent engineering, transparent DFM feedback, and highly responsive project management to actively reduce iteration cycles.
Assess the supplier's operational bandwidth to scale from initial single-unit prototypes to complex custom CNC machining assemblies without quality degradation.
Before initiating vendor outreach, you must look inward. Map out the specific environmental, mechanical, and regulatory requirements of your own product line. A prototype destined for a benign office environment requires vastly different manufacturing controls than a component facing high-vibration thermal cycling in an aerospace application. Document the exact operating temperatures, load-bearing requirements, and chemical exposures your parts will face.
This internal audit forms the baseline of your Request for Quote (RFQ) package and prevents you from over-specifying or under-specifying your machining requirements. Engineering teams should follow a strict internal checklist before engaging external shops:
Define the exact operating environment, including temperature extremes and chemical exposure.
Identify the primary load paths and mechanical stresses the component will endure during testing.
Determine the regulatory compliance standards required for the final production unit.
Establish a firm budget ceiling for the prototyping phase to guide material selection.
Map out the internal testing schedule to dictate the required delivery dates for the machined parts.
Not all prototypes serve the same function. You must differentiate between visual models and functional, production-intent prototypes. Form and fit models primarily verify ergonomics and assembly clearances. Functional prototypes must behave identically to their final manufactured counterparts. Establish baseline requirements for suppliers based on the prototype's end-use.
If you are conducting thermal stress testing, the supplier must guarantee exact material matches and precise surface finishes. If you only need dimensional fit checks, you can often relax tolerance requirements to accelerate lead times. Understanding these phases allows you to match the right shop to the right task.
Prototype Phase | Primary Objective | Tolerance Requirements | Material Selection |
|---|---|---|---|
Proof of Concept | Visual validation, basic ergonomics | Relaxed (+/- 0.010") | Plastics, easily machined aluminum |
Form and Fit | Assembly clearance, mating part checks | Standard (+/- 0.005") | Production-intent alloys or close substitutes |
Functional Testing | Load testing, thermal cycling, field use | Tight (+/- 0.001" or better) | Exact production-grade materials required |

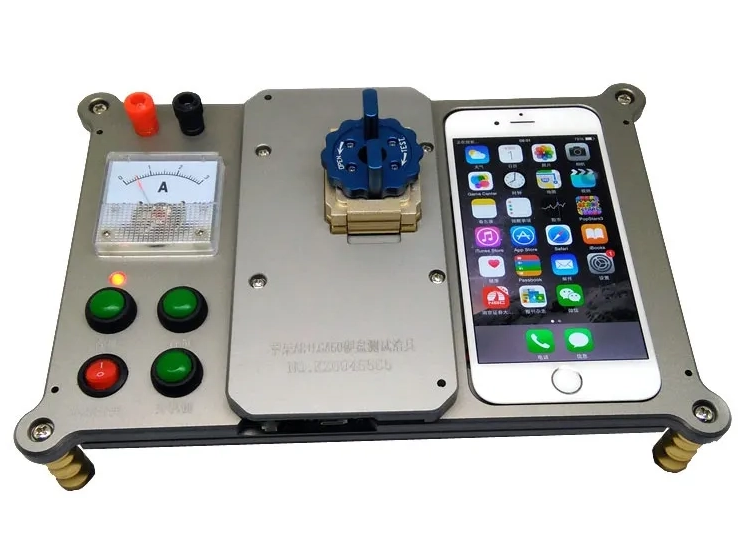

Evaluating a supplier's ability to machine custom workholding and precision machined test fixtures is a strong indicator of their overall technical competence. Test fixtures require exceptional accuracy to ensure they do not introduce variables into your validation process. Accurate test fixtures prevent false failures during prototype validation.
If a fixture is machined out of tolerance, a perfectly good prototype might fail a functional test, sending your engineering team on a wild goose chase. A supplier capable of designing and machining complex fixtures demonstrates a deep understanding of metrology and functional assembly. They understand how to locate parts on primary datum structures and how to clamp components without inducing mechanical deformation.
Define exact production volumes, raw material requirements, and non-negotiable lead times prior to requesting quotes. Ambiguity in your initial communication leads to inaccurate quoting and misaligned expectations. Specify whether you need a single unit, a batch of ten, or a bridge-to-production run of fifty.
Clearly state if material substitutions are strictly prohibited. Establishing these hard constraints upfront immediately filters out suppliers who lack the capacity or material sourcing networks to meet your project demands. It also sets a professional tone, signaling to the machine shop that your engineering team operates with discipline and clarity.
A supplier's machine park dictates the number of setups required to complete a part, which directly impacts both tolerance stack-up and lead time. You must understand the practical differences between 3-axis, 4-axis, and 5-axis machining capabilities regarding complex prototype geometries.
3-Axis machining works well for simpler, prismatic parts. However, complex geometries require multiple manual repositionings. Each setup introduces a new opportunity for human error and tolerance deviation. If a machinist has to flip a part three times in soft jaws, you will likely see a 0.001" to 0.002" runout error accumulate across those operations.
4-Axis machining incorporates a rotary axis, allowing the machine to work on multiple sides of a part without manual repositioning. This reduces setups and improves concentricity for cylindrical components. 5-Axis Indexed (3+2) keeps the cutting tool stationary while the table rotates the part into position. This is excellent for complex multi-sided parts, drastically reducing setup counts. 5-Axis Continuous moves the tool and the part simultaneously across all five axes. This is mandatory for machining complex sweeping curves, organic shapes, and aerospace impellers.
Define realistic tolerance expectations for your prototypes. Standard machining tolerances typically hover around +/- 0.005 inches. Precision applications often require tolerances tighter than +/- 0.0005 inches. Achieving these tighter tolerances requires specialized tooling, climate-controlled facilities, and slower feed rates.
When evaluating a supplier for CNC Machined Parts, investigate their in-house metrology capabilities. A supplier claiming high precision must back it up with advanced inspection equipment. Coordinate Measuring Machines (CMM) and First Article Inspection (FAI) reporting are non-negotiable for verifying critical dimensions on production-intent prototypes. You should also ask about their optical comparators, profilometers for surface finish verification, and their calibration schedules.
For highly regulated industries, a supplier's Quality Management System is just as important as their machine tools. Verify specific certifications to ensure the supplier is qualified to produce your parts. ISO 9001 demonstrates a baseline commitment to consistent quality and process control.
AS9100 adds stringent requirements for aerospace applications, including risk management and counterfeit parts prevention. ISO 13485 is mandatory for medical device components, requiring rigorous documentation and traceability. Never assume a supplier holds these certifications. Always request current documentation during the auditing phase and verify the scope of their certification matches your manufacturing needs.
Material substitution during the prototyping phase introduces severe risks. If a supplier swaps a specified aerospace-grade aluminum for a commercial-grade equivalent to save time, your functional tests become invalid. The prototype will not behave identically to future production parts.
Outline strict requirements for Mill Test Reports (MTRs) and material certifications. These documents trace the raw material back to the original foundry, verifying chemical composition and physical properties. Insist on full traceability before issuing any purchase orders. For critical applications, you may also need to specify heat lot tracking to ensure consistency across multiple prototype batches.
Prototyping is inherently iterative. You need a supplier who communicates clearly and rapidly. Evaluate the supplier's quoting speed and the clarity of their technical responses. Do they provide a dedicated project manager? A single point of contact ensures your prototypes are delivered exactly as specified within tight timelines.
When design changes occur, a responsive project manager prevents miscommunications from reaching the shop floor. They act as a translator between your engineering team and the machinists, ensuring that updated CAD revisions immediately replace obsolete files on the machine controllers.
Evaluate how the supplier handles CAD file ingestion and initial print reviews. The best machining partners practice concurrent engineering. They do not blindly machine to print. Instead, they actively challenge design assumptions.
A valuable supplier will review your 3D models and 2D drawings simultaneously, identifying conflicting tolerances or missing critical dimensions before the first chip is cut. This collaborative approach prevents costly rework and accelerates the overall development cycle. They will ask questions about datum structures and functional mating surfaces to ensure they prioritize the most critical features during the machining process.
A competent prototype partner identifies specific design features that drive up manufacturing time and complexity. They will highlight deep pockets that require specialized long-reach tooling, which increases chatter and slows feed rates. They will flag sharp internal corners that demand tiny end mills, suggesting standard radii instead.
They will also identify non-standard thread sizes that require custom taps. By addressing these cost-drivers early, you optimize the design for future scalability without compromising the prototype's function. Common DFM checks include:
Evaluating length-to-diameter (L:D) ratios for internal pockets to avoid tool deflection.
Standardizing internal corner radii to match common end mill sizes.
Eliminating unnecessary tight tolerances on non-mating surfaces.
Ensuring wall thicknesses are sufficient to prevent warping during heavy material removal.
Reviewing tapped hole depths to prevent tap breakage in hard alloys.
The machining market generally divides into two main categories: algorithmic quoting networks and traditional dedicated job shops. Understanding the differences helps you align the supplier with your specific project needs. Networks offer speed, while dedicated shops offer deep engineering collaboration.
Feature | Rapid Prototyping Networks | Dedicated CNC Job Shops |
|---|---|---|
Quoting Speed | Instant, automated via web portals. | Manual review, typically 24-48 hours. |
DFM Support | Automated, basic geometry checks. | Deep, collaborative engineering feedback. |
Tolerance Capabilities | Standardized, often relaxed for speed. | Highly customizable, capable of ultra-precision. |
Supplier Transparency | Opaque; parts routed to unknown third parties. | Transparent; direct access to the facility and machinists. |
Best Use Case | Simple geometry, urgent form/fit models. | Complex parts, functional testing, tight tolerances. |
You cannot optimize for speed, cost, and quality simultaneously. Prioritizing rapid turnaround often necessitates compromises. If you need a part in 48 hours, the supplier may not have time to source specialized aerospace alloys or perform secondary heat treatments. Rapid turnaround often requires relaxing surface finish requirements and accepting standard tolerances.
Conversely, if you demand ultra-tight tolerances and complex geometries, you must accept longer lead times and higher engineering involvement. Provide a realistic assessment of these trade-offs to your internal stakeholders to manage expectations effectively. Rushing a high-precision component usually results in scrapped parts and blown budgets.
When you share proprietary CAD data, you expose your core intellectual property. Outline mandatory security protocols before sending any files. Non-Disclosure Agreements (NDAs) are the absolute minimum requirement. Ensure the supplier uses secure file transfer protocols rather than standard email attachments.
For defense and aerospace applications, verify strict ITAR compliance. An ITAR-registered facility guarantees that your technical data remains secure and is only handled by authorized personnel. You should also inquire about their internal cybersecurity measures, such as NIST SP 800-171 compliance, to ensure your digital assets are protected from external breaches.
A common pitfall is utilizing a shop that excels at single-unit prototype CNC machined parts but lacks the infrastructure to scale. When you transition to production, you discover they cannot meet volume demands or maintain consistency. This forces a costly vendor transition, requiring you to re-qualify a new supplier from scratch.
Define criteria for selecting a partner capable of handling both prototypes and low-to-mid volume production. Look for facilities equipped with automated pallet pools, robotic machine tending, and robust quality control systems capable of handling larger batch sizes. A shop that can scale with your product lifecycle eliminates the friction of transferring tribal knowledge to a new vendor.
Prototypes rarely come off the machine ready for use. They often require secondary operations like anodizing, heat treating, passivation, or complex assembly. Evaluate the supplier's network or in-house capabilities for these post-processing steps. If a supplier must outsource finishing, it adds days to your lead time and increases the risk of parts getting damaged in transit.
A partner capable of handling custom CNC machining assemblies and managing the entire finishing supply chain significantly reduces your administrative burden and accelerates delivery. They understand how to pre-machine parts undersize to accommodate the dimensional buildup of Type III hardcoat anodizing or how to mask critical grounding points before powder coating.
The most effective prototype CNC supplier functions as an extension of your internal engineering team. They provide critical manufacturability insights rather than acting as a passive order-taker. By challenging your designs and offering proactive solutions, they help you build a better product faster. When shortlisting suppliers, follow a strict filtering sequence based on technical capabilities, quality systems, and communication transparency.
To initiate the quoting process effectively, execute the following next steps:
Export native 3D CAD models alongside fully dimensioned 2D prints that clearly highlight all critical tolerances and GD&T callouts.
Draft a concise summary of the prototype's testing objectives, end-use environment, and required material certifications.
Execute mutual NDAs with your shortlisted suppliers before transmitting any proprietary design data.
Request a formal DFM review meeting alongside the initial quote to gauge the supplier's engineering competence.
A: Standard lead times typically range from 5 to 15 business days, depending on part complexity and material availability. Expedited services can deliver parts in 24 to 72 hours, though this usually requires relaxing tolerance requirements and limits material choices to readily available stock.
A: Tight tolerances require specialized tooling, slower cutting speeds, and frequent machine calibration. They also demand rigorous CMM inspection and higher scrap rates. These factors significantly increase machining time and labor, directly driving up the cost of the prototype.
A: Using the same supplier ensures a seamless transition, as they already understand the part's manufacturing nuances. However, verify that the prototype shop has the automated equipment and quality control infrastructure necessary to scale into low-to-mid volume production without compromising consistency.
A: At a minimum, suppliers should hold ISO 9001. For aerospace and defense, AS9100 is mandatory to ensure strict risk management. For medical devices, ISO 13485 is required to guarantee rigorous documentation, traceability, and process control.
A: Always execute a Non-Disclosure Agreement (NDA) before sharing files. Use secure, encrypted file transfer protocols instead of standard email. If your project involves defense applications, ensure the supplier is explicitly ITAR registered and compliant.
A: Precision fixtures hold the prototype securely and accurately during functional testing. If a fixture is out of tolerance, it introduces external variables that can cause a perfectly good prototype to fail the test, leading to unnecessary and costly design iterations.
A: Rapid networks use algorithms for instant quoting and route parts to third-party shops, prioritizing speed over engineering support. Traditional job shops provide direct communication, deep DFM collaboration, and tighter tolerance controls, though their quoting process takes longer.
