Key Differences Between Various Precision CNC Milling Parts

Selecting milled components goes beyond a simple purchasing task. It represents a critical technical risk management decision for your engineering team. Misaligning a part’s geometry or material with the chosen process drives up lead times. It also scales unnecessary production costs rapidly. Vague terms like precision remain highly subjective in manufacturing. They carry little weight until you tie them directly to specific ISO standards. They must also align with strict functional requirements in your assembly.

This guide provides a skeptical, evidence-based framework for evaluating these components. We explore part complexity, material behavior, and functional applications thoroughly. You will learn how to secure reliable manufacturing outcomes. Navigating the modern vendor landscape requires a clear understanding of machine capabilities. Our structured approach ensures you avoid over-engineering. You can maintain strict quality control while optimizing project budgets efficiently.

Key Takeaways

• Process determines unit economics: The jump from 3-axis to 5-axis machining significantly reduces setup times for complex geometries but carries a higher baseline hourly rate.

• Material choice impacts machinability: Sourcing custom plastic parts requires accounting for thermal expansion during cutting, whereas custom metal parts prioritize tooling rigidity and feed rate optimization.

• Over-tolerancing destroys budgets: Specifying high precision CNC milling parts strictly where functional mating surfaces require it prevents exponential cost increases.

• Vendor capabilities vary: Shortlisting partners requires auditing their inspection capabilities (e.g., CMM availability) as heavily as their machining floor.

Evaluating Part Complexity: Standard vs. Five Axis CNC Milling Parts

Buyers often over-specify machine capability. They might also underestimate setup complexities for multi-sided parts. Both scenarios lead to inflated budgets. Understanding baseline capabilities helps you align part geometry to the correct machine architecture.

Standard 3-axis and 4-axis machines handle prismatic shapes efficiently. They excel at producing flat surfaces and single-plane features. Standard milling proves sufficient for most foundational brackets and enclosures. However, multi-sided parts introduce hidden costs. Every time an operator stops the machine to flip the workpiece, labor time increases. Manual re-fixturing also breaks the datum reference. This introduces minor alignment errors across different setups.

Advanced processes solve these alignment issues. Five axis CNC milling parts become necessary for continuous toolpaths. They manage organic geometries seamlessly. These machines rotate the cutting tool or the bed along additional axes like a trunnion table. You can machine a part entirely in a single setup. A 5-axis setup often uses dovetail workholding. This grips a tiny fraction of the raw stock. It allows the spindle to access five faces without collision. This single-setup approach eliminates tolerance stack-up errors entirely. It guarantees strict geometric relationships between opposing faces.

Use this decision matrix to evaluate complexity:

• Review the 3D model for undercut features requiring special cutting tools.

• Count the distinct faces requiring machining operations.

• If a part demands more than three manual setups on standard machines, quote it for multi-axis processing.

• Compare the baseline hourly machine rate against the saved labor time.

Material Dynamics: Custom Metal Parts vs. Custom Plastic Parts

Material selection fundamentally changes the milling approach. It dictates tooling selection, spindle speeds, and final part characteristics. We categorize solutions to highlight these divergent manufacturing realities.

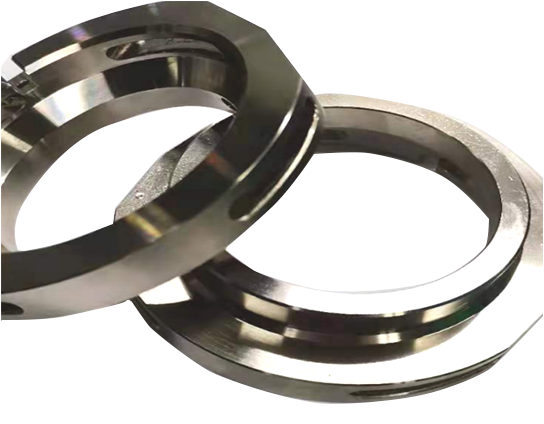

Engineers specify Custom Metal Parts for structural integrity. Common alloys like Aluminum 6061 offer excellent machinability. They clear chips easily and disperse heat quickly. Stainless Steel 304 and 316 present different challenges. They tend to work-harden during machining. Operators must maintain aggressive feed rates to prevent the tool from rubbing the surface. Titanium requires even more specialized strategies. It holds heat near the cutting edge. Shops must use high-pressure cutting fluids to prevent catastrophic tool failure.

Polymer components require a completely different mindset. Sourcing custom plastic parts means accounting for thermal expansion. Plastics like Delrin, PEEK, and Polycarbonate expand rapidly when exposed to friction. Aggressive cutting generates heat. This heat causes the material to swell. Once the part cools, it shrinks out of tolerance. Warping remains a severe risk. Internal stresses release unevenly as material is removed. Engineers often require specific annealing cycles before and after machining to stabilize the material structure.

Coolant strategies also differ wildly. Metals typically require flood coolant to clear chips and reduce heat. Plastics often perform better with a chilled air blast. Liquid coolant can sometimes cause unwanted chemical reactions or micro-cracking in sensitive polymers. You must weigh structural requirements against machinability ratings. This evaluation projects accurate unit costs.

Defining the Threshold for High Precision CNC Milling Parts

Differentiating between commercial standards and true precision determines your project budget. Standard commercial tolerances generally follow ISO 2768-m guidelines. They cover non-critical dimensions effectively. True high-precision requirements demand tight tolerances down to ±0.0005 inches or even single-digit microns.

An exponential cost curve governs High precision CNC milling parts. Tighter tolerances force machinists to slow down feed rates significantly. They must perform frequent tool changes to counter microscopic tool wear. Shops must also maintain strict climate-controlled environments. A simple five-degree temperature shift expands aluminum enough to ruin a tight tolerance. Shops handling high precision run spindle warm-up cycles daily. This standardizes the thermal growth of the machine components before the first cut happens. A spindle can grow several tenths of a thousandth of an inch just from internal bearing friction. These environmental controls increase baseline operational costs.

Engineers should utilize Geometric Dimensioning and Tolerancing (GD&T) strictly where necessary. Follow these implementation steps:

1. Identify critical mating surfaces in the assembly model.

2. Apply tight profile and position tolerances solely to these functional zones.

3. Define bearing fits and sealing grooves using specific micro-inch requirements.

4. Leave all non-critical cosmetic dimensions assigned to standard baseline tolerances.

5. Review the final drawing to strip away any vanity tolerances.

This targeted approach prevents skyrocketing production expenses. You buy precision exactly where the assembly requires it.

Process Selection: When to Choose Milling Over Turning

Component buyers sometimes struggle to categorize parts correctly. Ambiguous geometry leads to suboptimal quoting. Sending a hybrid part to a strictly milling-focused shop increases setup times. Understanding the core mechanics clarifies your procurement path.

Turning spins the workpiece against a stationary cutting tool. It works perfectly for cylindrical parts, shafts, and threaded rods. The spinning action guarantees concentricity. CNC milling parts follow a different kinematic rule. Milling spins the cutting tool against a stationary workpiece. This approach remains mandatory for asymmetrical shapes, flat profiles, or off-center features.

Modern manufacturing blurs these lines continually. Mill-turn viability has increased through advanced CNC lathes featuring live tooling. Modern lathes often feature sub-spindles and Y-axis capabilities. They handle complex off-center drilling effortlessly. They perform cross-drilling and face-milling while holding the cylindrical part. However, dedicated milling centers remain the superior choice in specific scenarios. They provide much higher material removal rates on non-cylindrical block-stock. Heavy roughing operations require the rigid spindle architecture found only in dedicated vertical or horizontal mills.

Shortlisting Partners for Custom CNC Milling Parts

Evaluating a machine shop is an exercise in auditing their quality control. It tests their operational transparency. Do not evaluate partners based solely on their equipment list. Anyone can purchase advanced machinery. True capability lies in process control.

You must verify their inspection evidence. Ask if they provide First Article Inspection (FAI) reports routinely. Verify their Coordinate Measuring Machine (CMM) availability. Without CMM verification, a shop cannot guarantee micron-level accuracy. During the pilot run, evaluate their material traceability. Can they provide raw material mill certifications upon request? This proves critical for highly regulated industries.

Scalability forms another critical evaluation dimension. Can the vendor transition from prototyping Custom CNC milling parts to low-volume production seamlessly? Massive re-tooling delays disrupt supply chains. You need a partner capable of preserving toolpaths and fixture designs for future production runs. Check for industry compliance standards. Look for ISO 9001 certifications. Aerospace applications demand AS9100 registration. Medical components require strict ISO 13485 adherence.

We recommend initiating the relationship cautiously. Start with a controlled pilot run. Submit a complex benchmark part to validate their stated tolerances. This test also evaluates their communication cadence during production delays.

Conclusion

Successful procurement requires balancing geometric complexity against realistic capabilities. You must align material selection with expected machining realities. Targeted tolerance applications protect your financial resources. Over-tolerancing provides zero functional benefit.

Engage manufacturing partners early during the DFM phase. Identifying cost-saving adjustments before locking the final print saves weeks of lead time. It simplifies fixture design and reduces raw material waste.

Submit your 3D CAD files and detailed 2D drawings today. We offer a comprehensive technical review. Experience a fully transparent quoting process designed for engineering exactness.

FAQ

Q: What is the standard tolerance for standard vs. high precision CNC milling parts?

A: Standard commercial milling usually follows ISO 2768-m, achieving tolerances around ±0.005 inches (0.127 mm). High precision metrics demand tighter controls, often reaching ±0.0005 inches (0.012 mm) or less. Part geometry and material stability heavily influence the actual achievable tolerance. Thermal expansion makes holding tight tolerances much harder in plastics compared to metals.

Q: How do material choices affect the lead time of custom CNC milling parts?

A: Tough materials like Inconel or Titanium drastically slow down machining times. They require conservative feed rates and frequent tool replacements. Conversely, readily available materials like Aluminum 6061 or standard acetal plastics accelerate production. Better machinability equals faster spindle speeds, translating directly to shorter manufacturing lead times.

Q: When should I design for 5-axis milling instead of 3-axis?

A: Apply the setup reduction rule. Use multi-axis machining when complex angles or continuous curved surfaces make standard fixturing impossible. If a part requires three or more manual re-fixturing steps on a traditional machine, upgrading prevents tolerance stack-up errors. It guarantees precise alignment across opposing geometric faces.

Q: Can plastics achieve the same milled surface finish as metal?

A: Plastics generally exhibit different surface roughness realities. Aggressive cutting often leaves visible tool marks or causes minor smearing due to heat. While metals polish naturally through the cutting action, plastics may require specific sharp tooling. They often need secondary post-processing, like vapor polishing, to match the visual clarity of machined metals.
