In precision manufacturing, the gap between a CAD model and a functional, high-tolerance component is bridged by understanding exact machine capabilities. Misaligning design requirements with machining realities—such as machine rigidity, toolpath generation, and workholding constraints—leads to cost overruns, delayed production, and compromised part integrity. Engineering and procurement teams face the challenge of specifying complex geometries while balancing tight tolerances, material machinability, and production scalability. Evaluating whether a project requires standard machining or advanced multi-axis intervention is critical for cost control and ensuring repeatable output quality. This guide provides a technical framework for evaluating milling capabilities, optimizing designs for manufacturability (DFM), and selecting the right manufacturing partners to execute complex, high-stakes projects. We will break down machine kinematics, material behaviors, and the specific inspection protocols required to validate high-precision components.
Capability Alignment: Matching part complexity to the correct machine capability (e.g., standard 3-axis vs. 5 axis CNC milling services) reduces setup times, optimizes computer-controlled toolpaths, and minimizes tolerance stacking errors.
DFM Drives ROI: Proactively addressing design constraints—such as cavity depth-to-width ratios, internal corner radii, and wall thickness—directly mitigates production risks and lowers per-part costs.
Application-Specific Stringency: High-reliability sectors require specialized evaluation criteria; for example, semiconductor packaging components demand strict thermal stability, superior surface finishes, and rigorous inspection protocols.
Vendor Evaluation: Assessing CNC milling services requires looking beyond hourly rates to evaluate machine anatomy (spindle performance, rigidity), quality assurance infrastructure, scalability, and compliance certifications.
Establishing baseline requirements before engaging manufacturing partners prevents over-engineering or under-specifying critical dimensions. When you release a drawing to the shop floor, every callout dictates a specific manufacturing action, tool selection, and inspection method. Defining success means aligning your functional requirements with the physical realities of metal removal.
The core mechanics of milling involve a rotating cutting tool advancing into a stationary or precisely positioned workpiece, driven by CAM-generated toolpaths. The anatomy of the machine directly dictates the achievable baseline precision of CNC machined parts. Bed rigidity, typically achieved through heavy cast iron bases or polymer concrete, dampens vibration during heavy roughing cuts. Linear guide rails and ballscrews determine how accurately the machine positions the tool. Spindle runout—the slight wobble of the tool as it rotates—must be kept to mere tenths of a thousandth of an inch to maintain tight tolerances and prevent premature tool wear.
When evaluating output quality, you must consider the entire kinematic chain. A high-speed spindle is useless if the machine frame flexes under load. Similarly, advanced CAM software cannot compensate for worn ballscrews that introduce backlash. Understanding these mechanical realities helps you set realistic expectations for part accuracy and surface finish before the first chip is cut.
Specifying tight tolerances (e.g., ±0.0005 inches) carries significant cost implications. You should apply these limits only where functionally necessary, such as bearing press fits, dowel pin locations, or dynamic sealing surfaces. When a machinist sees a tight tolerance, they must slow down feed rates, take multiple spring passes to account for tool deflection, and perform frequent manual inspections using micrometers or bore gauges. This added labor directly inflates the part cost.
Surface finish, measured in Roughness Average (Ra), is another major cost driver. Achieving a 16 Ra or better requires specific strategies:
Implementing high-speed finishing passes with minimal stepovers.
Utilizing specialized tooling, such as wiper inserts or solid carbide end mills with high flute counts.
Applying high-pressure coolant to evacuate chips and prevent recutting, which mars the surface.
Controlling the ambient temperature of the shop to prevent thermal expansion of the machine and workpiece during long finishing cycles.
Machinability ratings dictate how easily a material can be cut, directly impacting cycle times and tool life. Aluminum 6061 is the industry standard for machinability, allowing for aggressive material removal rates. In contrast, Titanium Grade 5 and Inconel are notoriously difficult to machine due to their high tensile strength and tendency to work-harden. Material hardness and thermal conductivity play massive roles in the manufacturing process.
Material | Machinability Rating | Thermal Conductivity | Manufacturing Impact |
|---|---|---|---|
Aluminum 6061-T6 | Excellent (100%) | High | Allows high RPM and feed rates; excellent chip evacuation. |
304 Stainless Steel | Fair (45%) | Low | Prone to work-hardening; requires rigid setups and sharp tooling. |
Titanium Grade 5 (Ti-6Al-4V) | Poor (20%) | Very Low | Heat concentrates at the cutting edge; requires high-pressure coolant and slow surface speeds. |
PEEK (Polymer) | Good | Very Low | Requires sharp, polished flutes to prevent melting and smearing; sensitive to clamping pressure. |
Comparing machine architectures helps determine the most efficient production method for specific part geometries. Selecting the right equipment for your CNC milling parts prevents bottlenecks, reduces labor, and ensures dimensional accuracy across complex features.
Standard 3-axis machines move linearly along the X, Y, and Z axes. They are highly efficient for planar geometries, brackets, enclosures, and parts requiring single-setup operations. If all features—holes, pockets, and profiles—are accessible from one direction, a 3-axis vertical machining center (VMC) is the logical choice. However, these machines have strict limitations regarding undercuts and features on multiple faces. Machining a different face requires an operator to manually unclamp the part, clean the vise, rotate the workpiece, and re-indicate the zero point. Every manual intervention introduces the risk of alignment errors and tolerance stacking.
Continuous 5-axis and 3+2 (positional) machining eliminate multiple setups. By utilizing a trunnion table or a swivel head, the machine can access five sides of a prismatic part without manual intervention. Utilizing 5 axis CNC milling services reduces tolerance stacking and slashes labor costs. In 3+2 machining, the rotary axes lock into position, and the machine performs standard 3-axis cuts on the angled face. Continuous 5-axis machining moves all five axes simultaneously, which is necessary for machining complex, organic surfaces like impellers or turbine blades.
Beyond geometry, 5-axis capabilities allow machinists to use shorter, more rigid cutting tools. When the spindle can tilt away from the workpiece walls, the tool does not need excessive stick-out to reach deep cavities. Shorter tools deflect less, vibrate less, and produce superior surface finishes while allowing for faster feed rates.
The physical work envelope dictates the maximum part size a machine can handle. You must verify the X, Y, and Z travel limits, as well as the maximum table load capacity. Performance factors like spindle speed (RPM), torque, and horsepower determine a vendor's ability to efficiently machine different alloys. High RPM (12,000 to 30,000+) is necessary for driving small micro-endmills in aluminum or plastics. High torque, often achieved through geared spindles, is required for hogging out tough materials like stainless steel or titanium at lower speeds.
Automatic tool changers (ATC) and live tooling drastically reduce cycle times. A robust ATC can hold anywhere from 30 to over 100 tools, allowing the machine to run complex parts or multiple different jobs unattended. Tool presetters and laser tool measurement systems inside the machine envelope automatically check for tool wear and breakage, ensuring consistent quality during long production runs.
Applying milling capabilities to industries with zero-margin-for-error requirements demands rigorous oversight and specialized equipment. The semiconductor industry relies on components that function flawlessly under extreme thermal and mechanical stress.

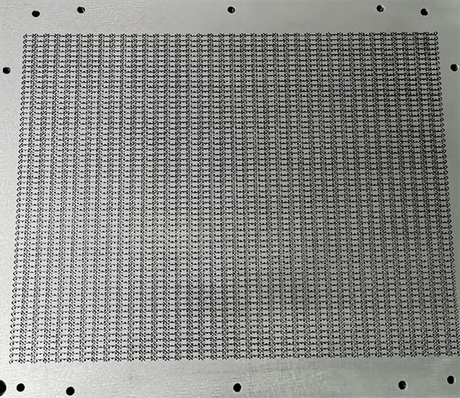

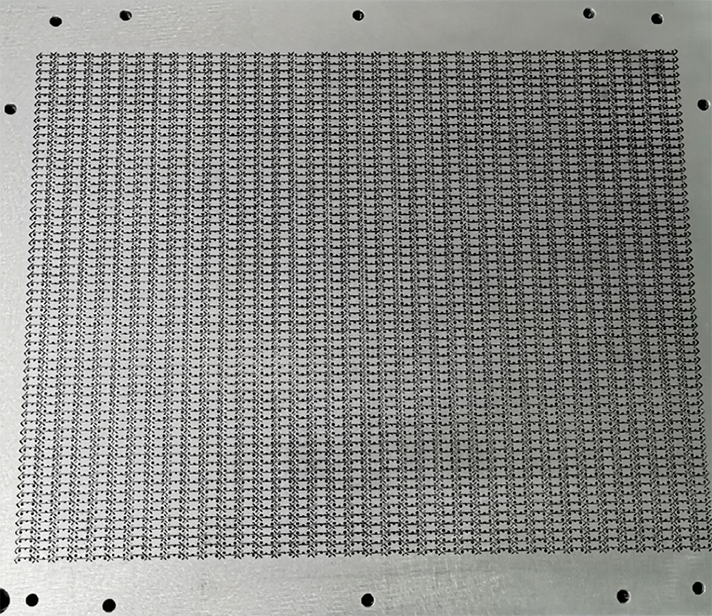

Micro-machining capabilities are necessary for creating intricate features in test sockets, heat sinks, and wafer handling equipment. Extreme dimensional stability is non-negotiable for precision semiconductor components. Even microscopic deviations can cause a failure in the final assembly, leading to massive yield losses. Manufacturers must utilize high-end equipment calibrated to sub-micron accuracy, often housed in temperature-controlled environments to prevent thermal expansion of the machine casting during operation.
Machining high-performance materials used in semiconductor packaging components presents unique challenges. Materials like Kovar, Invar, and specialized technical ceramics have specific thermal expansion properties designed to match silicon. Machining induces residual stresses that can cause the part to warp after it leaves the fixture. To combat this, machinists employ specific strategies:
Performing rough machining operations to remove the bulk of the material.
Sending the part out for thermal stress-relieving or annealing cycles.
Returning the part to the machine for light finishing passes to hit final dimensions.
Utilizing low-stress clamping techniques, such as vacuum chucks or custom soft jaws, to prevent distortion during the final cuts.
Components destined for semiconductor environments must meet strict cleanliness standards. Requirements include absolutely burr-free finishes to prevent particulate contamination in cleanrooms. Machinists often use specialized deburring tools, media tumbling, or electropolishing to ensure all edges are broken and smooth. Ultrasonic cleaning is mandatory to remove residual cutting fluids, tramp oils, and microscopic debris. Furthermore, vacuum-compatible surface treatments, such as specific types of anodizing or nickel plating, are applied to prevent outgassing when the components are subjected to high-vacuum manufacturing environments.
Poor CAD design translates directly to manufacturing failures. It causes tool breakage, generates inefficient toolpaths, and leads to exponential cost increases. Proactive DFM eliminates these risks by aligning the digital model with the physical constraints of the milling process.
Designing for the machining process saves time and money. Sharp internal corners are impossible to machine with round end mills. If a design requires a perfectly square internal corner, the shop must use secondary operations like electrical discharge machining (EDM) or broaching, which add significant time. You must design internal corner radii slightly larger than the standard tool radius. For example, if a pocket is 1 inch deep, it will likely be cut with a 0.250-inch diameter end mill. The internal radii should be at least 0.130 inches to prevent the tool from engaging too much material in the corners and chattering.
Design Feature | DFM Guideline | Manufacturing Impact |
|---|---|---|
Internal Corner Radii | > 1/3 of cavity depth | Allows use of larger, more rigid tools; prevents chatter and tool breakage. |
Cavity Depth | Max 4x tool diameter | Reduces tool deflection; improves surface finish and dimensional accuracy. |
Wall Thickness | Min 0.8mm (Metals) | Prevents material deformation, vibration, and tear-out during cutting. |
Hole Depth | Max 5x to 8x drill diameter | Prevents drill wandering and chip packing; avoids the need for specialized deep-hole drilling. |
Designing parts with flat reference surfaces improves workholding rigidity. If a part consists entirely of organic, curved surfaces, the machinist must machine custom soft jaws or use 5-axis dovetail fixtures to hold the raw stock. Adding dedicated fixturing tabs that are machined off in a final operation can secure difficult shapes efficiently. Advanced workpiece-holding capabilities, such as zero-point clamping systems and tombstone fixtures, influence feature accessibility. Proper part orientation on the machine bed maximizes tool reach and minimizes the need for custom, expensive workholding solutions. When designing, consider how the raw billet will be gripped during the first operation and how the semi-finished part will be held during the second operation.
Applying global tight tolerances inflates costs unnecessarily. A standard block tolerance in the title block of the drawing is usually sufficient for non-critical dimensions. You should apply Geometric Dimensioning and Tolerancing (GD&T) strictly to critical mating surfaces. GD&T provides a clear framework for defining part geometry, allowing you to control position, flatness, parallelism, and profile independently. This framework communicates exactly which features matter most, allowing the machinist to focus their time and inspection efforts where they add actual functional value, rather than chasing a ±0.001-inch tolerance on a cosmetic chamfer.
Moving beyond unit price is crucial when selecting manufacturing partners. You must assess the total cost of quality, machine performance, and overall reliability to ensure a stable supply chain.
Robust quality control separates reliable vendors from the rest. Coordinate Measuring Machine (CMM) reports verify complex geometries mathematically, using tactile probes or vision systems to check dimensions against the original CAD model. First Article Inspection (FAI) ensures the initial setup meets all specifications before full production begins. Material test reports (MTRs) guarantee raw material authenticity, detailing the chemical composition and mechanical properties of the heat lot. Evaluate whether the vendor uses in-process inspection with spindle probes to verify dimensions while the part is still in the machine, or if they rely solely on post-process verification in the quality lab.
Assess a vendor's ability to transition a part as demand grows. A shop might excel at manual or low-volume prototype cells, turning around a handful of parts quickly. However, high-volume production requires fully automated, computer-controlled, palletized production lines. Horizontal machining centers (HMCs) with multi-pallet pools allow operators to load raw material while the spindle is cutting another part. This automation ensures high repeatability, maximizes spindle uptime, and lowers the per-unit cost as your project scales.
Industry requirements dictate necessary certifications. Look for ISO 9001 for general quality management systems. Aerospace and defense projects require AS9100, which mandates strict traceability and risk management protocols. Medical devices demand ISO 13485 compliance. When engaging CNC milling services, discuss data security protocols. Handling proprietary CAD files requires secure servers, encrypted file transfers, and strict internal access controls. ITAR compliance is mandatory if you are dealing with defense-related components, ensuring that technical data is restricted to authorized personnel.
The successful procurement of milled components relies on a rigorous alignment between part design, material properties, and specific kinematic capabilities. Understanding the rigidity, axis configuration, and inspection capabilities of the chosen equipment ensures your parts are manufactured correctly the first time. Prioritize manufacturing partners who offer transparent DFM feedback, possess the appropriate spindle performance for your geometry, and demonstrate robust, verifiable quality control systems.
Consolidate your 3D CAD models and 2D drawings, ensuring GD&T is applied only to critical functional features.
Compile clear material specifications, including any required post-processing, plating, or thermal treatments.
Request a comprehensive DFM review alongside your initial RFQ to identify cost-saving opportunities and tooling constraints early.
Verify vendor certifications and request sample CMM inspection reports to validate their quality assurance claims.
A: A 3-axis machine moves linearly along the X, Y, and Z axes, making it suitable for simpler, planar parts. A 5-axis machine adds two rotational axes. This allows the cutting tool to approach the workpiece from nearly any angle. It is essential for complex geometries, utilizing shorter tools, and significantly reducing setup changes.
A: Recommend applying standard block tolerances (e.g., ±0.005") globally across the drawing. Reserve tight tolerances (e.g., ±0.001" or tighter) exclusively for critical mating features, bearing fits, or sealing surfaces. This prevents the machinist from wasting time inspecting non-functional dimensions.
A: Highlight materials that offer thermal stability, low outgassing, and high machinability. Aluminum 6061-T6 is common for structural parts. Specialized engineering plastics like PEEK or Torlon are used for test sockets. Controlled-expansion alloys like Kovar or Invar are critical for environments with extreme temperature fluctuations.
A: Deep cavities require long, specialized cutting tools which are highly prone to deflection and chatter. This necessitates slower feed rates, optimized toolpaths, and multiple light passes. These factors significantly increase machining time and cost. We recommend keeping cavity depth to no more than 4 times the tool diameter.
A: Advise requesting Material Test Reports (MTRs) to verify raw material authenticity and chemical composition. Ask for First Article Inspection (FAI) reports for initial validation of the setup. Finally, require CMM inspection reports for critical dimensions on production runs to ensure ongoing repeatability.
