High-precision manufacturing requires a delicate balance of speed, accuracy, and material versatility. For engineering teams and procurement managers, the challenge often lies in determining the most cost-effective production route for specific geometries. Decision-makers frequently struggle to assess whether a part requires the complex setup of a 5-axis machine or if a standard 3-axis setup suffices. Understanding these distinctions is vital for optimizing budgets and lead times.
CNC (Computer Numerical Control) milling is defined as a subtractive manufacturing process that utilizes rotating cutting tools to remove material from a stationary workpiece. Unlike other methods that melt or mold material, milling carves the final shape from a solid block, ensuring superior structural integrity. This guide goes beyond basic definitions to evaluate production logic, cost drivers, and the quality assurance protocols necessary for sourcing high-quality CNC Milling parts.
Core Function: CNC milling is distinct from turning; it is best suited for non-cylindrical, complex geometries and prismatic parts.
Scalability: Viable for both rapid prototyping and low-to-mid-volume production runs.
Cost Drivers: Part complexity, material machinability, and setup time (CAM programming) are the primary influencers of TCO.
Selection: The choice between 3-axis, 4-axis, and 5-axis machines directly impacts the precision and cost of custom CNC Milling parts.
To master procurement strategies, one must first understand how the machine interacts with the raw stock. This process is fundamentally "subtractive," meaning we start with more material than we need and cut away the excess. This differs significantly from additive manufacturing (3D printing), where layers are built up. The subtractive nature allows for the use of materials with verified distinct grain structures and isotropic strength, which is critical for load-bearing components.
The primary decision pivot in machining is choosing between milling and turning. In CNC milling, the cutting tool rotates at high speeds (RPM) while the workpiece remains clamped to a machine bed. The tool moves along various axes (X, Y, and Z) to shave off chips of material. This architecture makes milling the superior choice for square, flat, or irregular prismatic shapes.
Conversely, CNC turning spins the workpiece itself while a stationary tool engages the material. Turning is inherently designed for cylindrical or tubular parts. If your design features complex contours, pockets, or holes not along a center axis, milling is the required process.
The versatility of milling machines allows for an immense diversity of outputs. Applications range from lightweight aerospace brackets and intricate automotive manifolds to rugged electronic enclosures. This flexibility extends to material selection. A capable machine shop can process soft metals like aluminum and magnesium, hard alloys like stainless steel and titanium, and high-performance engineering plastics such as PEEK or Delrin.
Modern milling is not manually driven; it is a fully digital workflow that ensures repeatability across thousands of units. The process follows three distinct stages:
CAD (Design): Engineers create a "digital twin" of the part in 3D software. This model defines the geometry, dimensions, and tolerances.
CAM (Manufacturing): This is the critical translation step. Programmers use CAM software to determine the most efficient toolpaths. They optimize spindle speeds and feed rates to reduce cycle time and prevent tool wear.
G-Code: The CAM software outputs G-Code, the alphanumeric language that drives the machine's motors. It tells the machine exactly where to move, how fast to spin, and when to change tools.
Not all milling machines are created equal. The architecture of the machine directly influences the cost, speed, and achievable precision of your components. Selecting the right machine type for your specific design is a major factor in controlling unit costs.
The Vertical Machining Center is the workhorse of the industry. In a VMC, the spindle axis is vertically oriented. The workpiece sits on a table that moves in the X and Y axes, while the spindle moves up and down in the Z axis.
VMCs are best suited for most standard custom CNC Milling parts, particularly those requiring plate work or single-sided machining. The primary advantage is cost; VMCs have lower hourly operational rates and are widely available. However, if a part needs machining on multiple sides, the operator must manually flip and re-fixture the part. This increases setup time and introduces the risk of human error in realignment.
In an HMC, the spindle is mounted horizontally. This orientation offers a significant operational edge: gravity. As the tool cuts, chips naturally fall away from the workpiece, preventing re-cutting and improving surface finish. HMCs are ideal for high-volume production and heavy material removal.
These machines often utilize "tombstones"—large fixture blocks that hold multiple parts on different faces. The machine can rotate the tombstone to access different parts, dramatically increasing throughput. While the initial setup cost is higher, the per-unit cost drops significantly for larger batches.

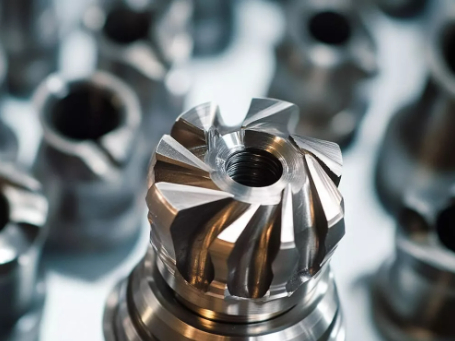

For the most complex geometries, such as aerospace impellers or medical implants, 5-axis milling is essential. Unlike standard 3-axis machines, 5-axis units rotate the workpiece or the tool along two additional rotational axes (A and B). This allows the cutter to approach the part from virtually any direction.
The "Done-in-One" advantage is the key selling point here. A machinist can access five sides of a prismatic part in a single setup. This eliminates the need for multiple manual fixtures, thereby reducing cumulative tolerance errors. While the hourly machine rate is higher, the reduction in total handling time and the increase in accuracy often justify the investment for critical components.
| Machine Type | Best For | Primary Advantage | Cost Profile |
|---|---|---|---|
| 3-Axis VMC | Flat parts, drilling, single-face machining | Low hourly rate, high availability | Low (High if multiple setups needed) |
| HMC | High-volume production, deep cuts | Efficient chip evacuation, multi-part fixturing | Medium (High efficiency at volume) |
| 5-Axis | Complex contours, aerospace parts | Single setup accuracy, complex geometry access | High (Justified by precision) |
Understanding the economics of machining allows you to engineer costs out of your product before a single chip is cut. The Total Cost of Ownership (TCO) for milled parts is rarely just the material cost; it is heavily weighted by machine time and risk.
Complexity adds cost exponentially, not linearly. Features like deep pockets, tight internal radii, and thin walls force the machinist to run the machine slower to avoid tool deflection or chatter. This increases run time.
Adhering to the "Standard Tooling" rule is a powerful way to reduce costs. Design your parts so they can be cut with standard end mill sizes (e.g., 1/4", 1/2"). If you specify a non-standard radius that requires a custom-ground tool, you incur additional tooling charges and lead time delays.
Volume analysis focuses on amortizing setup costs. Every job requires Non-Recurring Engineering (NRE)—the time spent programming CAM, cutting fixture jaws, and setting up the machine. If you order one part, you pay that entire cost on one unit. If you order 1,000, that cost is absorbed comfortably.
It is crucial to identify the break-even point. For very low volumes (1-5 units) of complex geometries, 3D printing might be cheaper due to zero setup requirements. For very high volumes (10,000+), Injection Molding becomes superior. CNC milling dominates the middle ground, offering high precision without the five-figure tooling costs of molds.
Material choice impacts cycle time significantly. Aluminum 6061 is often the baseline for cost because it machines rapidly and causes minimal tool wear. In contrast, stainless steel or titanium is much harder and generates more heat. These materials require slower cutting speeds and frequent tool changes. Even if the raw material price difference is marginal, the processing cost for titanium can be double or triple that of aluminum.
Optimizing a design for the milling process—known as Design for Manufacturing (DFM)—is the single most effective way to lower prices and improve quality. Small adjustments in CAD can save hours of machine time.
Tool Access is paramount. The cutter must be able to reach every feature without the tool holder colliding with the part or the fixture. Undercuts—features that hang over others—often require special T-slot cutters or 5-axis machining, driving up costs.
Internal Radii present a common physical limitation. Because milling tools are round and rotate, they cannot cut a perfectly square inside corner. Designers must include fillets (rounded corners) in their CAD models. The larger the radius, the larger the tool that can be used, which removes material faster and reduces costs.
Tolerances should be applied judiciously. Demanding a tolerance of ±0.001" on every dimension requires specialized inspection and slow finishing passes. Standard tolerances of ±0.005" are sufficient for most features. Over-tolerancing is a primary source of unnecessary budget bloat.
The "as-milled" finish typically shows visible tool marks. While functionally smooth (typically 125 Ra), aesthetic parts often require post-processing. Operations like bead blasting, anodizing, or powder coating improve durability and appearance but add days to the lead time. Clearly defining finish requirements early prevents mismatched expectations.
Selecting a partner is as critical as selecting the material. A capable shop acts as an extension of your engineering team, offering DFM feedback and production insights. When evaluating a CNC Milling Parts service, consider their hardware, software, and quality protocols.
Assess their machine list against your part complexity. If your parts have complex compound angles, ensure the vendor has true 5-axis capabilities rather than just 3+2 axis indexing. Furthermore, ask about their metrology equipment. Do they offer automated inspection reports using CMM (Coordinate Measuring Machine) data? This data provides objective proof that the part meets your specifications.
For regulated industries, certification is non-negotiable. ISO 9001 certification demonstrates a baseline commitment to process management. For aerospace projects, AS9100 is required. Beyond certificates, look for traceability. Can the vendor provide Material Test Reports (MTRs) to prove the metal's origin? Do they perform First Article Inspections (FAI) to validate the process before running the full batch?
Finally, evaluate the vendor's scalability. Ideally, you want a partner who can handle your prototype run and seamlessly transition to a bridge production run. A shop that forces you to re-engineer the CAM process or switch vendors as volumes increase adds risk to your supply chain. Look for services that offer a pathway from one-off prototypes to batches of several thousand without a drop in quality.
CNC milling remains the backbone of precision manufacturing, offering an unmatchable combination of dimensional accuracy, robust material properties, and production speed. It bridges the gap between digital design and physical reality for industries ranging from medical devices to aerospace.
Success in this field lies not just in the machine capability, but in the intersection of smart DFM, appropriate material selection, and partnering with a transparent manufacturer. By understanding the mechanics of material removal and the economics of setup time, buyers can make informed decisions that reduce costs without compromising quality.
To move forward, we recommend auditing your current part designs for "milling-friendliness." Check for tight internal radii, deep pockets, and unnecessary tolerances. Optimizing these features before requesting quotes is the fastest route to a better unit cost.
A: The primary difference lies in the movement. In CNC milling, the workpiece is stationary (clamped to a bed) while the cutting tool rotates and moves across it to remove material. This is best for square or irregular shapes. In CNC turning, the workpiece spins at high speed while a stationary tool cuts into it, making it ideal for cylindrical or round parts like shafts and pins.
A: CNC milling is extremely accurate. Standard commercial tolerances usually hover around ±0.005 inches (0.13 mm). However, high-precision machines with thermal stability controls can achieve tolerances as tight as ±0.0005 inches or better. Tighter tolerances generally increase the cost due to the need for slower processing and specialized inspection.
A: It depends on the complexity. Milling requires an initial setup cost (programming and fixturing), which can make a single part expensive compared to 3D printing. However, for batches of 10 to 100 parts, milling often becomes more cost-effective than printing and is certainly cheaper than the tooling required for injection molding.
A: Milling is highly versatile. Common metals include Aluminum (6061, 7075), Steel (Stainless 303, 304, 316), Brass, and Titanium. Rigid engineering plastics are also frequently milled, including Delrin (Acetal), PEEK, Nylon, and Polycarbonate. The choice depends on the mechanical and thermal requirements of the final application.
A: To get an accurate quote and manufacture a part, you should provide a 3D CAD model in a neutral format like STEP (.stp) or IGES (.igs). Native formats like Parasolid are also good. Additionally, a PDF engineering drawing is crucial for specifying tolerances, threads, and surface finish requirements that are not explicit in the 3D model.
