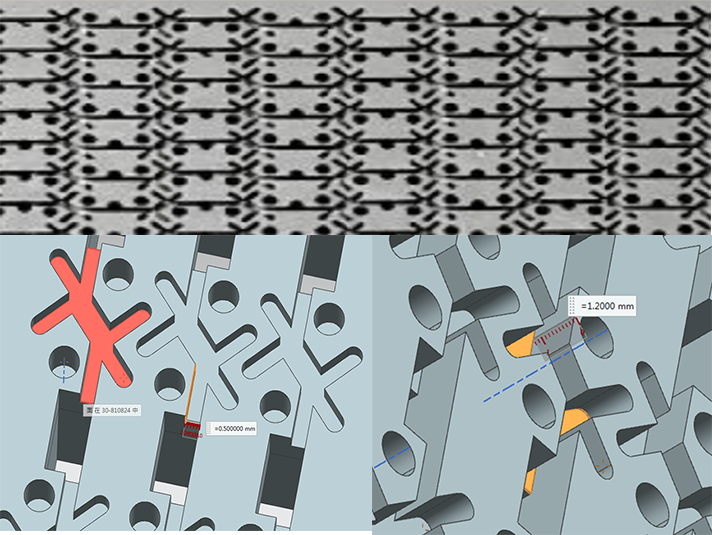

Selecting the wrong manufacturing process at the critical transition point between prototyping and production carries massive financial risk. Engineers constantly navigate the tension between upfront setup expenses, per-unit economics, and strict engineering requirements like tight tolerances and specific material properties. Relying on outdated rules of thumb often leads to severe budget overruns and delayed time-to-market. A miscalculated production strategy can trap a project in endless iteration loops or force expensive late-stage redesigns.
We must objectively compare subtractive manufacturing against additive manufacturing using a comprehensive evaluation framework. By analyzing geometry, production volume, material specifications, and hidden labor overhead, you can determine the most efficient path forward. Understanding the distinct operational realities of both methods prevents costly procurement mistakes. This guide breaks down the core mechanical and financial drivers to help you make data-backed manufacturing decisions.
Volume Dictates Economics: 3D printing generally wins on unit cost for quantities of 1–10 due to zero tooling costs and rapid net-shape delivery, while CNC machining rapidly amortizes setup costs to become more economical at higher volumes.
Complexity vs. Tolerance: 3D printing accommodates complex internal geometries without cost penalties, whereas CNC machining is mandatory for straightforward part designs requiring tight tolerances and superior surface finishes.
Material Realities: The raw material cost for 3D printing filament/resin/powder is significantly higher per kilogram than bulk stock used for CNC machining, impacting the cost of larger, denser parts.
Hidden Labor Costs: Both methods carry hidden labor expenses—CNC requires skilled CAM programming and individual setup, while 3D printing requires manual support removal and post-processing.
The Hybrid Advantage: Combining both methods—such as 3D printing near-net shapes for rapid iteration and using CNC machining for critical tolerances—often yields the best balance of cost and precision.
Subtractive manufacturing demands significant preparation before the spindle even turns. Programmers must generate precise CAM toolpaths, selecting the exact end mills, face mills, and drills required for the geometry. They calculate feeds, speeds, and stepovers based on material hardness and machine rigidity. Workholding presents another hurdle. Machinists frequently cut custom soft jaws or build dedicated fixture plates to secure irregular billets without inducing stress deformation. This intensive front-end labor makes the initial setup for CNC Machined Parts highly front-loaded. Conversely, additive manufacturing utilizes a low-friction slicing process. Software automatically generates support structures and toolpaths in minutes. The automated setup allows 3D printers to deliver net shape components quickly with minimal operator intervention.
To understand the disparity in setup, consider the standard workflow for a milled component:
Import the CAD model into the CAM environment and establish the coordinate system.
Select the appropriate cutting tools and build the digital tool library.
Generate roughing, semi-finishing, and finishing toolpaths.
Design and machine custom soft jaws to hold the raw stock.
Load the tools into the machine carousel and touch off tool length offsets.
Run a first-article inspection piece to verify dimensional accuracy.
Bulk metal and plastic billets cost substantially less per kilogram than proprietary 3D printing materials. Extruded aluminum bars or solid blocks of engineering plastics are commoditized industrial goods. You buy them by the ton. In contrast, specialized filaments, photopolymer resins, and atomized metal powders carry a massive premium. Manufacturers of printing equipment often lock users into proprietary material ecosystems, further driving up consumable expenses.
However, subtractive processes inherently generate waste. Milling a complex bracket from a solid block might turn eighty percent of the raw material into chips and swarf. Additive manufacturing is highly efficient with material usage. It deposits material only where needed. You only account for the final part volume plus the disposable support structures.
Material Type | Subtractive Cost Profile | Additive Cost Profile | Waste Factor |
|---|---|---|---|
Aluminum Alloys | Low cost per kg (Bulk billet) | Extremely high cost per kg (Atomized powder) | High subtractive waste (Chips) |
Engineering Plastics | Low cost per kg (Extruded rod/plate) | High cost per kg (Filament/Resin) | Moderate to high subtractive waste |
Stainless Steel | Moderate cost per kg | Extremely high cost per kg | High subtractive waste |
Modern multi-axis machining centers boast rapid material removal rates. High-speed spindles and rigid machine frames allow aggressive roughing passes. A component that takes hours to print might be milled in minutes. 3D printers build components slowly, layer by layer. The Z-axis height directly dictates the build time. A tall, thin part takes significantly longer to print than a flat, wide part of the same volume.
Operational overhead also diverges significantly. Industrial milling centers require substantial power consumption, routine coolant replacement, and expensive preventative maintenance. You must account for spindle rebuilds, way lube, and compressed air generation. These factors heavily influence the hourly shop rate. Printers generally consume less power and incur lower mechanical maintenance costs, though consumable components like nozzles, build plates, and resin vats require frequent replacement.
Skilled machinists command high hourly rates. They handle complex setups, monitor tool wear, and execute rigorous quality assurance protocols. Their expertise is critical for preventing machine crashes and maintaining tight tolerances. A single programming error can destroy a spindle worth tens of thousands of dollars.
3D printing leverages unattended operation. Once a print starts, it requires virtually no supervision until completion. However, additive manufacturing hides labor at the end of the process. Technicians must manually remove support structures, wash resin parts in volatile solvents, and manage thermal curing cycles. For metal printing, operators must cut parts off the build plate using wire EDM and load them into specialized furnaces for stress relief. This manual post-processing quickly inflates labor expenses on large batches.
Early-stage prototyping often requires functional load-bearing tests. While additive methods provide rapid visual models, they frequently fail under mechanical stress. Utilizing CNC machined metal prototypes involves a higher initial investment but delivers uncompromising fidelity. Testing a physical part milled from the actual production material yields accurate performance data.
Skipping fragile printed models in favor of direct subtractive prototyping prevents late-stage failures. It exposes design-for-manufacturability (DFM) issues immediately. You discover tool access limitations, chatter risks, and fixturing challenges before committing to mass production. If a feature is impossible to reach with a standard end mill during the prototype phase, you can redesign it before ordering expensive production tooling.
The cost curve shifts dramatically as production volume increases. The steep initial setup expense of subtractive manufacturing dilutes across the batch. Once the machine is programmed and fixtured, the marginal cost per unit plummets. The machine simply runs the same G-code repeatedly.
Additive manufacturing maintains a relatively flat cost curve. The hundredth printed unit costs roughly the same as the first. Cycle times remain slow, and consumable expenses scale linearly. The break-even threshold depends heavily on part size and complexity. For straightforward geometries, subtractive methods often become more economical past the fifty-unit mark. For highly complex, organic shapes, printing might remain cheaper up to several hundred units.
Scaling subtractive operations involves optimizing the work envelope. Machinists transition from single-part vises to multi-part tombstones or automated pallet pools. This maximizes spindle uptime and allows for lights-out manufacturing. One operator can manage multiple machines simultaneously, swapping pallets while the spindles keep cutting.
Scaling additive production relies on print farms. While adding more desktop printers increases throughput, it fails to reduce the unit cost significantly. You still face linear increases in material consumption and manual post-processing labor. Print farms struggle to compete with the sheer output velocity of an optimized multi-axis milling center equipped with robotic part loaders.
Traditional milling handles standard alloys like 6061 Aluminum, 316 Stainless Steel, and Titanium effortlessly. The material properties remain consistent and isotropic. The grain structure of an extruded billet provides predictable strength under load.
Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) offer alternative paths for complex metal geometries. However, metal printing powders carry an extreme cost premium. Furthermore, printed metal components suffer from internal porosity and thermal stresses. They rarely meet strict dimensional requirements straight out of the powder bed. You almost always need secondary subtractive operations to hit final tolerances on mating surfaces. This hybrid approach—printing the near-net shape and milling the critical features—produces exceptional precision CNC machining components but requires careful budget management.
Machining engineering plastics from solid blocks guarantees superior mechanical performance. Materials like POM (Delrin), PEEK, and Nylon exhibit excellent machinability. The resulting CNC machined plastic parts possess isotropic strength, meaning they handle stress equally well in all directions. They also resist moisture absorption and chemical degradation better than porous printed alternatives.
Fused Deposition Modeling (FDM) introduces severe mechanical trade-offs. The layer-by-layer extrusion process creates anisotropic properties. Printed plastics exhibit significant weakness along the Z-axis, making them prone to delamination under shear loads. While SLA and SLS offer better surface finishes than FDM, they still struggle to match the sheer durability and thermal resistance of a solid milled plastic billet.
Additive manufacturing thrives on complexity. Organic shapes, internal cooling channels, and lightweight lattice structures pose virtually no geometric constraints. The printer simply deposits material where instructed. You do not have to worry about tool clearance or spindle collisions.

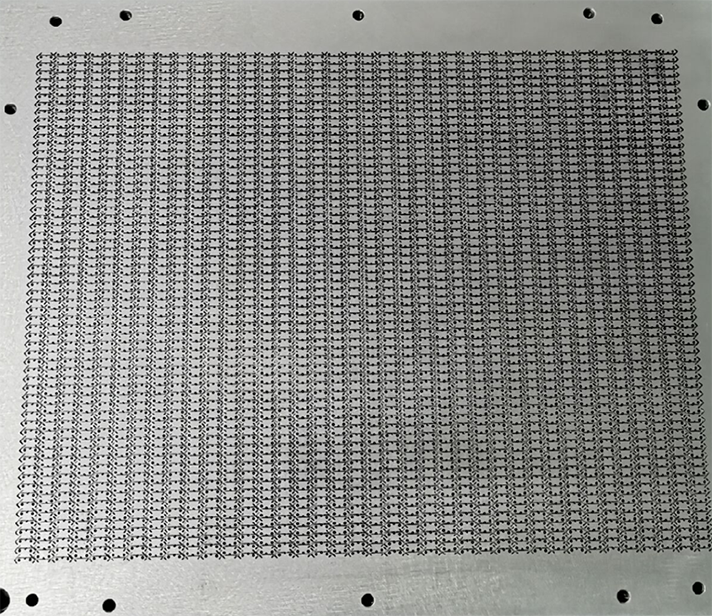

In the subtractive world, complexity drives up costs exponentially. Deep pockets, undercuts, and sharp internal corners require specialized tooling and multiple setups. Machining complex organic shapes often necessitates expensive 5-axis simultaneous milling. You must use long, thin end mills that are prone to deflection and chatter. Conversely, straightforward, massive block geometries are vastly cheaper and faster to mill. Removing material from flat planes using large face mills is incredibly efficient.
Assembly requirements dictate the necessary manufacturing precision. Subtractive centers routinely hold standard tolerances of ±0.005 inches. With careful probing, rigid workholding, and finishing passes, they can achieve ±0.001 inches or tighter. This guarantees precise fitment for bearings, dowel pins, and sliding mechanisms.
3D printing struggles with dimensional stability. Tolerances often hover around ±0.010 inches or worse. Thermal shrinkage, warping during cooling, and layer shifting introduce significant variability. Selecting a process incapable of meeting your assembly requirements results in high rejection rates and wasted capital. If a bearing needs a press fit, a printed hole will likely require secondary reaming or boring.
Surface finish directly impacts both aesthetics and mechanical function. Subtractive processes provide excellent as-machined finishes directly off the machine. Depending on the feed rate, spindle speed, and tool geometry, you can easily achieve an Ra of 1.6 to 0.8 µm. Mating surfaces seal perfectly without secondary intervention.
Printed components inherently display visible layer lines. Achieving a smooth surface requires intensive labor and additional materials. Technicians must perform manual sanding, chemical vapor smoothing, or abrasive bead blasting to eliminate the stepped texture. These post-processing steps add significant time and expense to the final part.
Common post-processing steps for printed parts include:
Manual removal of breakaway or dissolvable support structures.
Washing resin parts in isopropyl alcohol to remove uncured photopolymer.
UV curing cycles to achieve final mechanical properties.
Vapor smoothing with harsh chemicals to melt the outer layer lines.
Applying automotive primers and sanding blocks to prepare for paint.
Evaluation Metric | Subtractive Manufacturing (Milling/Turning) | Additive Manufacturing (3D Printing) |
|---|---|---|
Initial Setup Time | High (CAM programming, custom fixturing) | Low (Automated slicing software) |
Material Efficiency | Low (High subtractive waste/chips) | High (Only prints necessary material) |
Geometric Freedom | Limited by tool access and workholding | Virtually unlimited (internal channels, lattices) |
Dimensional Accuracy | Excellent (Tight tolerances, high repeatability) | Variable (Prone to thermal shrinkage and warping) |
Volume Scalability | Excellent (Rapid cycle times, amortized setup) | Poor (Linear cost scaling, slow build times) |
Investing in manufacturing infrastructure requires careful capital allocation. Purchasing desktop or industrial printers for in-house rapid iteration accelerates the design cycle. Engineers can test physical concepts within hours. The facility requirements for basic FDM or SLA printers are minimal.
Bringing industrial milling centers in-house demands massive capital expenditure. You must account for heavy-duty electrical drops, reinforced flooring, compressed air systems, and skilled personnel. You also need a robust system for managing hazardous coolant and sharp metal chips. Utilizing on-demand manufacturing networks for outsourced production mitigates these operational burdens. It provides access to industrial-grade equipment without the overhead.
In-house printing offers unbeatable turnaround times for single iterations. You can design a component in the morning, send it to the printer, and hold it by the afternoon. Outsourced subtractive manufacturing typically involves lead times measured in days or weeks. The shop must schedule machine time, order raw stock, program the toolpaths, and perform first-article inspections.
Supply chain bottlenecks affect both methods differently. Standard metal bar stock is globally commoditized and readily available from local distributors. Specialized printing resins and proprietary metal powders often face restricted availability and longer procurement delays. If your specific powder supplier experiences a shortage, your production line stops.
Designing exclusively for one process creates severe downstream risks. If you design a highly complex bracket specifically for powder bed fusion, scaling that part to mass production becomes problematic. Transitioning that organic geometry to a subtractive process or injection molding requires a complete, costly redesign.
You must add draft angles, eliminate internal voids, and widen tool access paths. You have to consider how a machinist will hold the part in a vise. Anticipating the final production method during the early prototyping phase prevents these structural dead ends. Always design with the final manufacturing process in mind.
Establishing rigorous inspection frameworks ensures reliable field performance. Solid milled components allow for straightforward quality control. Inspectors use coordinate measuring machines (CMM), micrometers, and standard hard gauges to verify dimensions. The solid nature of the billet means surface inspections generally reflect internal integrity.
Printed parts complicate inspection protocols. The internal porosity and variable density of printed structures make non-destructive testing (NDT) incredibly difficult. Ultrasonic testing and X-ray CT scanning become necessary to detect internal voids in critical printed metal components. This drastically increases the quality assurance budget and slows down the final delivery schedule.
Run your current CAD files through an automated DFM analysis tool to identify inaccessible features or unnecessary complexities.
Request a dual-quote from your manufacturing partner to compare real-world pricing between printing and milling for your specific geometry.
Evaluate your assembly tolerances and eliminate overly strict callouts on non-mating surfaces to reduce machining time.
Audit your prototype testing requirements to determine if isotropic mechanical strength is strictly necessary for the next iteration.
A: 3D printing is almost always cheaper for a single prototype. It requires zero custom tooling, no fixturing, and minimal programming time. Subtractive methods carry heavy upfront setup costs that make one-off prototypes significantly more expensive, though they offer superior mechanical fidelity.
A: In-house printing is highly cost-effective for rapid, low-fidelity design iterations due to low equipment costs. Outsourcing subtractive work is more cost-effective for final production parts, as it avoids the massive capital expenditure, facility upgrades, and skilled labor required to run industrial milling equipment.
A: Milled parts are cut from solid, extruded, or cast billets, retaining the material's continuous grain structure and isotropic strength. Printed parts are built layer-by-layer, creating microscopic voids and weak points between layers, resulting in anisotropic properties and vulnerability to shear forces.
A: Not entirely. While metal printing excels at complex internal geometries, it cannot achieve the tight tolerances or smooth surface finishes required for precision mating surfaces. Printed metal parts almost always require secondary subtractive operations to meet strict engineering specifications.
A: Yes. This hybrid approach is highly effective. You can print a complex near-net shape to save material and reduce roughing time, then mount the printed part in a milling center to machine critical bores, threads, and mating surfaces to exact tolerances.
A: The break-even point typically falls between 50 and 100 units, depending on part complexity. Below this, printing wins due to zero setup costs. Above this, the rapid cycle times of milling machines amortize the initial setup expense, making the unit cost significantly cheaper.
