Engineers face a constant, intense balancing act during product development. You must accelerate time-to-market. Simultaneously, you cannot compromise the mechanical integrity or the lifecycle of the component. This specific tension frequently creates massive bottlenecks during early hardware development. Design for Manufacturability (DFM) serves as the critical bridge spanning this gap. It connects rapid prototyping requirements directly to end-use reliability.
We establish a fundamental baseline assumption right away. Speed does not happen by rushing operators on the shop floor. True velocity is achieved by minimizing design revisions before production ever starts. You must select the right manufacturing method upfront to avoid pivoting later. Furthermore, aligning your team with a highly capable manufacturing partner eliminates friction. This guide explores how to optimize your engineering workflows. You will discover practical methods to evaluate processes and apply essential DFM principles. Following these steps ensures robust parts delivered on aggressive timelines.
Process Dictates Speed: CNC machining offers the fastest route for high-durability, low-volume needs, while rapid tooling accelerates injection molding for scale.
DFM is Non-Negotiable: Uniform wall thickness, proper radii, and strategic draft angles eliminate 80% of production delays.
Material Selection Limits: High-performance plastics require specific processing parameters; choosing standard engineering grades (like POM or PC) accelerates sourcing and production.
Supplier Capability is a Bottleneck: A competent custom plastic parts supplier provides automated DFM feedback and transparent lead times, preventing late-stage design bottlenecks.
Evaluating a project begins by defining rigid success criteria. You evaluate these parameters based on long-term lifecycle requirements versus immediate lead-time constraints. Will the assembly endure heavy physical impacts? Does the environment demand extreme thermal stability or chemical resistance? These specific criteria dictate your durability threshold. You establish this threshold before opening your CAD software to design custom plastic parts.
We frequently see the devastating consequences of rushing the engineering phase. Skipping a thorough DFM analysis inevitably leads to premature mechanical failure. For example, sharp transitions create severe stress concentrations. These concentrations cause the plastic to fracture under minimal load. Uneven cooling creates unpredictable warping across flat surfaces. Warping ruins critical mating features. These failures ultimately delay the project through forced rework. You lose weeks correcting mistakes you could have prevented in minutes.
Balancing the engineering triangle requires tactical decision-making. You constantly weigh production speed against mechanical durability and resource efficiency. How you balance them depends entirely on the current stage of your product lifecycle. Functional prototypes demand extreme speed. You just need to validate basic kinematics or form factors. Conversely, end-use production shifts the focus entirely. You prioritize long-term durability and scalable manufacturing reliability. Knowing your current stage helps you make informed design compromises.
Choosing a manufacturing process locks in your timeline trajectory. The method you select must align perfectly with volume needs, geometry complexity, and material behavior. We will explore the three primary avenues for manufacturing Custom Engineered Plastic Parts.
CNC machining remains a powerhouse for rapid iteration. We utilize advanced milling and turning centers to cut shapes directly from solid blocks of raw plastic.
Best for: Immediate turnaround times and the tightest possible tolerances. Machining allows you to test true end-use material properties immediately. You completely bypass lengthy tooling fabrication timelines. It excels for low-volume runs.
Limitations: Machining scales poorly as volumes increase. Removing material mechanically takes machine time. The unit economics become less favorable compared to molding at higher quantities.
Rapid tooling uses soft metals like aluminum to cut mold cavities quickly. This process accelerates traditional molding timelines significantly.
Best for: Bridging the difficult gap between late-stage prototyping and initial production runs. Aluminum tools comfortably yield 100 to 10,000 components. They provide highly scalable durability identical to mass production parts.
Limitations: This method still requires upfront tooling time. You might wait several days or a few weeks before seeing a first article. The geometry must also adhere strictly to molding rules.
Additive manufacturing builds components layer by layer. Industrial-grade printers handle highly demanding geometries effortlessly.
Best for: Consuming highly complex geometries impossible to machine or mold. It handles internal channels and organic lattices perfectly. You can run overnight iterations to refine concepts instantly.
Limitations: Printed structures often sacrifice isotropic strength. They exhibit weakness along the Z-axis layer lines. They also frequently lack the long-term environmental durability found in molded or machined alternatives.
Manufacturing Method | Ideal Volume Range | Lead Time Speed | Durability Profile |
|---|---|---|---|
CNC Machining | 1 - 50 units | Very Fast (Days) | High (End-use material properties) |
Rapid Injection Molding | 100 - 10,000 units | Moderate (Weeks) | Very High (Isotropic strength) |
Industrial 3D Printing | 1 - 100 units | Fastest (Hours to Days) | Moderate (Anisotropic behavior) |
Applying Design for Manufacturability (DFM) rules accelerates your timeline drastically. Proper DFM eliminates the friction between digital CAD models and physical shop floor realities. Let's review the fundamental rules.
Maintaining a consistent wall thickness prevents severe cosmetic and structural defects. Thick sections cool much slower than thin sections. This uneven cooling rate creates internal stresses. It pulls material inward, forming visible sink marks on the exterior. It also causes the entire component to warp out of tolerance. These defects stand as primary causes of production delays. You should keep transitions between thick and thin areas as gradual as possible. Use coring techniques to hollow out excessively thick regions.
You must eliminate sharp internal corners across your entire model. Sharp corners create massive stress concentrations. They act as initiation points for cracks under mechanical load. Furthermore, sharp internal corners drastically slow down CNC cutting tools. A round end mill physically cannot cut a sharp internal right angle. Adding generous radii allows machines to use larger, faster tools. In molding, a rounded corner promotes smoother, faster material flow.
Standard draft angles ensure quick and clean part ejection from a mold. We strongly recommend applying a minimum draft of 1 to 2 degrees on all vertical faces. Heavily textured surfaces require even steeper angles. Proper draft prevents parts from sticking. It eliminates scuff marks and reduces the force required for ejection.
You should aggressively advise your design team against unnecessary undercuts. Undercuts trap the geometry inside a simple two-part mold. They require complex side-actions or lifters within the tool architecture. These mechanisms increase tooling fabrication time heavily. Simplified geometries move into physical production significantly faster.
Engineers frequently fall into the trap of over-tolerancing. Applying a standard tight tolerance across an entire drawing acts as a massive speed bump. It slows down the physical machining process because operators must take slower, lighter cuts. More importantly, it creates severe inspection bottlenecks in the quality control department. You should apply tight tolerances only to critical mating surfaces. Relax the tolerances on non-functional aesthetic areas. This simple shift accelerates manufacturing and reduces unnecessary rejection rates.

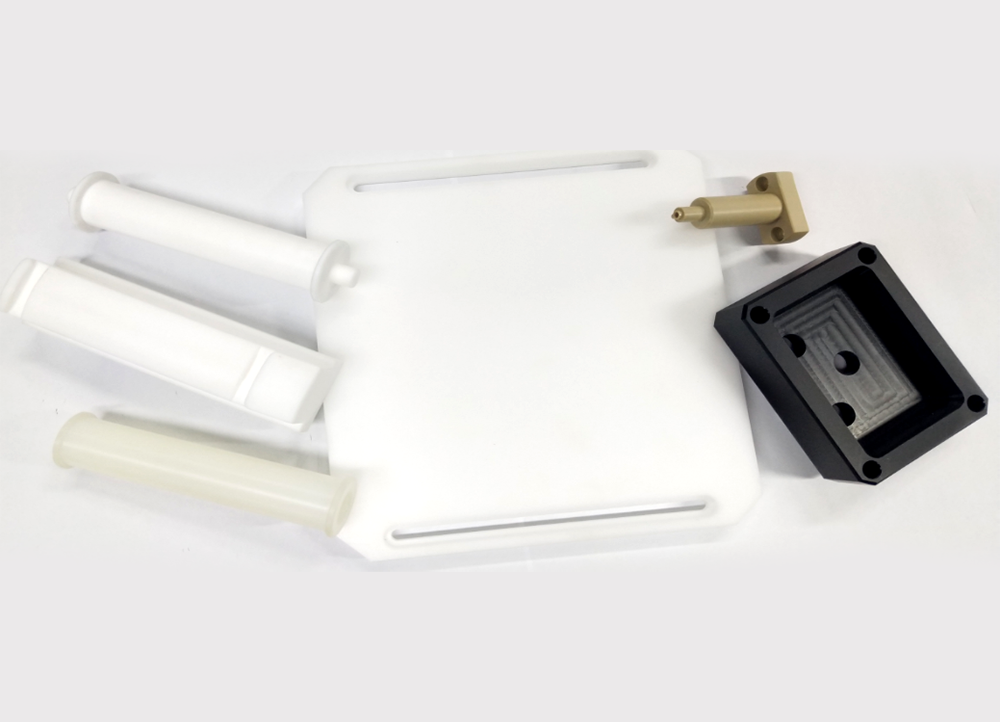

Material selection directly influences lead time and final performance. Selecting standard, readily available materials reduces sourcing delays entirely. Easily processed resins move through machinery rapidly. Let's examine some highly reliable options for rapid manufacturing.
Certain plastics behave much better under cutting tools or inside heated barrels. Highly machinable plastics produce continuous chips instead of melting onto the cutter. Highly moldable plastics flow easily into thin cavities without freezing prematurely. Selecting these cooperative materials shortens setup times. Operators spend less time troubleshooting process parameters.
Delrin (POM): This engineered thermoplastic offers incredible stiffness and exceptionally low friction. It boasts superb machinability. CNC mills cut Delrin quickly, leaving excellent surface finishes without secondary operations.
Polycarbonate (PC): PC provides massive impact resistance. It maintains good temperature tolerance under heavy mechanical stress. It works exceptionally well for transparent covers or rugged housings.
ABS: ABS remains an industry staple for both printing and molding. It balances impact resistance, tensile strength, and ease of processing perfectly. It is highly versatile for general-purpose applications.
PEEK and Ultem: These high-performance resins survive extreme environmental conditions. They resist high heat, harsh chemicals, and radiation. However, you must acknowledge sourcing these specialized grades may add time. Processing them requires specialized high-temperature equipment.
Many high-stakes industries require strict material traceability. Medical devices, aerospace components, and food-grade applications demand proper documentation upfront. You must verify ISO, FDA, or RoHS compliance before locking in your material choice. Failing to secure proper material certifications early causes massive compliance delays later. Always ask your supplier for detailed material data sheets during the initial quoting phase.
Your design speed ultimately relies on your manufacturing partner. Choosing the right facility removes late-stage communication bottlenecks. A highly competent custom plastic parts supplier acts as a direct extension of your internal engineering team.
A modern supplier must offer instant, software-driven manufacturability feedback. You upload a CAD file and algorithms highlight failing features immediately. It visualizes draft angles and pinpoints thin walls. This prevents frustrating, multi-day email chains waiting for a human engineer to reply. This rapid feedback loop keeps your development timelines moving forward relentlessly.
Digital brokering platforms introduce significant risks regarding misaligned timelines. When a platform outsources your machining or molding to a third-party shop, communication fragments. You lose direct control over the actual production schedule. Direct suppliers maintain in-house equipment. They provide reliable, transparent lead times because they control their own machines.
Speed must never compromise final component quality. Look for documented ISO 9001 certifications. Ask about their First Article Inspection (FAI) capabilities. Ensure they provide transparent material traceability for every batch they run. These strict quality assurance steps prevent defective parts from reaching your assembly line. Thorough inspection saves massive amounts of time down the road.
Watch out for vague lead-time guarantees during initial discussions. If they cannot commit to a firm shipping date, look elsewhere immediately. Be extremely wary of a reluctance to share tooling ownership terms. You should always retain ownership of the injection molds you finance. Finally, avoid partners who lack upfront communication regarding design flaws. A trustworthy manufacturer actively warns you about bad geometry before they ever cut metal.
Designing durable components quickly does not mean abandoning good engineering practices. It simply means designing specifically for your chosen manufacturing process. The fastest route to a reliable physical part always starts with a clean, optimized CAD file. You must pair that clean geometry with early, proactive supplier engagement.
Focus on standardized materials to eliminate sourcing and processing delays. Apply fundamental DFM principles to prevent manufacturing friction on the shop floor. Relax non-critical tolerances to accelerate both machining and final inspection. Adhering to these strict principles ensures your components arrive fast and perform flawlessly.
Take the next critical step toward validating your geometry today. Upload your 3D CAD model for an instant DFM analysis and quote to validate your design for production.
A: CNC machining is typically the fastest route for functional, durable parts in low volumes of 1 to 50 units. It often ships in just a few days. The process uses true end-use materials and completely bypasses lengthy tooling delays associated with injection molding.
A: You can reduce resource expenditure by relaxing non-critical tolerances across your design. Maximize internal corner radii to allow operators to use larger, faster end mills. Furthermore, design your geometry around standard material stock sizes to minimize unnecessary material removal during the creation of Custom Machined Plastic Parts.
A: Yes. Reputable suppliers provide automated or engineer-led DFM feedback during the initial quoting phase. They identify areas prone to failure, sink marks, or machining difficulties. Catching these issues before production begins ensures a faster transition from digital model to physical part.
