Original Equipment Manufacturers face continuous pressure to optimize unit economics. You must maintain the structural integrity and performance of critical assemblies without overspending. Procurement and engineering teams often encounter highly variable quotes for common components like shafts, housings, brackets, and complex valve bodies. Hidden cost multipliers inflate overall lifecycle expenses. Over-tolerancing, poor material machinability, and secondary operations disrupt supply chain predictability. Understanding the exact technical levers dictating machining costs helps teams align Design for Manufacturability with procurement strategies. This guide deconstructs the primary cost drivers. We provide a framework for evaluating machining partners based on total value rather than just the lowest initial bid. You will learn how to identify unnecessary expenses and streamline your component designs for efficient manufacturing.
Tolerances Drive Exponential Costs: Specifying tight tolerance precision machined parts only where functionally critical prevents unnecessary cycle time and inspection costs.
Machinability Trumps Raw Material Price: Materials with lower raw costs but poor machinability ratings often result in higher final part costs due to accelerated tool wear and extended process times.
Volume Amortizes Setup: The ratio of setup time to runtime dictates the economic viability of a production run; strategic batching reduces per-unit costs significantly.
DFM is the Strongest Cost Lever: Early collaboration with a machining partner to simplify geometries and reduce required machine setups can yield 20–40% reductions in part costs.
Establishing success criteria requires balancing strict engineering specifications against commercial viability. Form, fit, and function must align with budget constraints. The standard cost equation breaks down into five distinct categories. Final part cost equals material cost plus setup time plus machining time plus secondary operations plus quality assurance. Every decision made during the CAD design phase directly impacts one or more of these variables.
Understanding the cost spectrum requires looking at the intersection of geometric complexity, material selection, and tolerance requirements. A simple aluminum bracket requires minimal spindle time and standard tooling. A complex titanium aerospace housing demands specialized carbide end mills, rigid workholding, and extensive machine time. Procurement teams must understand how these variables interact during the actual machining process to evaluate quotes accurately.
Quote variance often frustrates procurement teams. Different machine shops quote the exact same CAD file with massive price differences. Equipment capabilities, overhead, specialization, and available capacity explain this variance. A shop running fully depreciated 3-axis mills carries lower overhead but may require more manual labor for setups. A facility utilizing brand-new 5-axis automated cells charges higher hourly rates but finishes complex geometries in a single operation. Sourcing Precision Machined Parts requires matching the right shop infrastructure to the specific component requirements.
Machine shop hourly rates depend on several operational factors. Facility power consumption, coolant maintenance, tooling consumption, and operator wages all factor into the baseline rate. When a shop quotes a part, they estimate the total hours required for programming, setup, and runtime, then multiply that by their shop rate. If your part design forces the shop to run the machine slower to prevent tool deflection, your runtime increases, and your final cost goes up.
Raw material costs only tell part of the story. You must analyze the trade-off between cheap raw materials and the time required to machine them. Tool wear directly impacts the final bill. Titanium Grade 5 possesses low thermal conductivity. Heat concentrates at the cutting edge rather than evacuating with the chip. This causes built-up edge and premature catastrophic tool failure. The shop must buy expensive, application-specific variable-flute carbide end mills and run them at conservative surface footage.
Aluminum 6061 cuts rapidly with minimal tool wear. The machinist can push the feed rates and achieve massive material removal rates. Spindle time dictates the bulk of the machining cost. A material that costs slightly more per pound but machines twice as fast will almost always result in a cheaper final part.
Material | Machinability Rating | Tool Wear Impact | Typical Application |
|---|---|---|---|
Aluminum 6061-T6 | Excellent (270%) | Very Low | General structural components, brackets, housings |
Brass 360 | Excellent (100% Baseline) | Very Low | Fittings, valve bodies, electrical contacts |
Stainless Steel 304 | Fair (45%) | Moderate to High | Corrosion-resistant medical and food-grade parts |
Titanium Grade 5 (Ti-6Al-4V) | Poor (15%) | Very High | High-strength aerospace and medical implants |
Inconel 718 | Very Poor (10%) | Extreme | High-temperature turbine blades, exhaust components |
Material yield also matters heavily. Starting with a massive billet to machine a thin-walled structure wastes money. You pay for the raw material and the time required to turn it into chips. High scrap rates during setup further degrade the material yield. Machinability ratings provide a reliable indicator of how a material will behave under the cutter. Always consult with your manufacturing partner about alternative alloys that meet your mechanical requirements but offer better machinability.
Setup reduction saves money immediately. A multi-sided valve body requires multiple flips on a standard 3-axis machine. Each flip requires a machinist to stop the spindle, blow off the coolant, unclamp the vise, remove the part, deburr the edges, clean the vise jaws, insert the next blank, tap it down with a dead-blow hammer, tighten the vise to a specific torque, and press cycle start. Every second the spindle is not turning, the shop is losing money. This manual intervention adds pure labor time to your quote.
5-axis machining eliminates manual repositioning. The machine rotates the part automatically, allowing the cutting tool to access five sides of the block in a single setup. The higher hourly rate of a 5-axis machine often offsets the manual labor costs on complex geometries. For multi-sided parts, 5-axis continuous or 3+2 positional machining provides superior feature-to-feature accuracy because the part never leaves the original fixture.

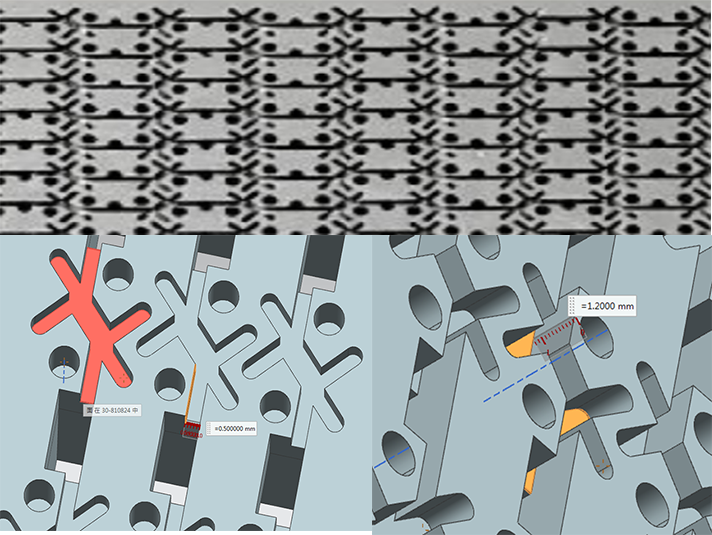

Feature-specific drivers inflate costs regardless of the machine type. Deep pockets cause tool deflection. When the length-to-diameter ratio of an end mill exceeds 3:1, the tool begins to bend under cutting forces. The machinist must take lighter radial passes, drastically increasing cycle time. Thin walls vibrate and chatter during heavy cuts, requiring specialized tool paths. Non-standard threads require custom taps instead of standard thread mills. Simplifying these features reduces cycle time and eliminates the need for custom tooling.
The exponential tolerance curve is a harsh reality in manufacturing. Standard tolerances allow the machine to run fast. Moving to micro-tolerances forces the machinist to slow down. They must take spring passes to eliminate tool deflection. A spring pass involves running the exact same tool path a second time without commanding a deeper cut. This removes the microscopic amount of material left behind by tool pressure, but it doubles the cycle time for that specific feature.
Thermal expansion becomes a major issue at this level. A ten-inch aluminum part grows significantly with a five-degree temperature change. The shop must machine the part in a temperature-controlled environment. They must also allow the coolant and the part to normalize to room temperature before final inspection. Specifying tight tolerance precision machined parts only where mating surfaces demand it saves capital.
Scrap rates increase naturally when chasing tenths of a thousandth of an inch. A single chip caught in the vise jaws can throw a part out of tolerance. Suppliers price this scrap risk into your initial quote. Environmental controls and specialized metrology equipment add overhead to the shop rate. If you demand aerospace-level tolerances on a standard commercial bracket, you will pay aerospace prices.
The setup-to-runtime ratio dictates batch economics. Programming the CAM software, setting up the tools, and cutting soft jaws takes hours. The machinist must load the tools into the carousel, touch off the tool lengths using a presetter, and establish the work coordinate system using a spindle probe. If you order five parts, those setup hours divide across five units. If you order five hundred parts, the setup cost per unit becomes negligible.
Economies of scale mathematically favor larger runs. Once the machine is set up and the first article is approved, the operator simply loads raw material and unloads finished parts. Strategic batching helps manage this dynamic. Use blanket orders to secure machine time. Schedule releases over twelve months. You secure high-volume pricing while minimizing inventory holding costs. Low-volume prototyping runs will always bear the brunt of programming and fixturing costs.

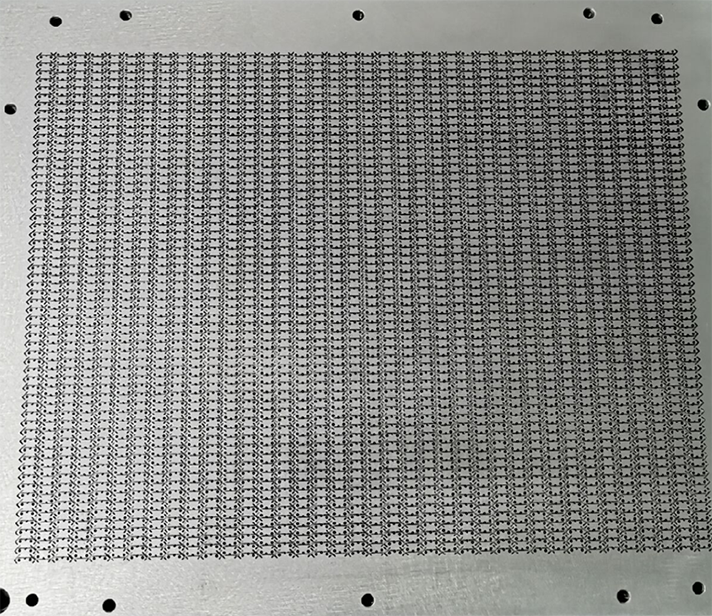

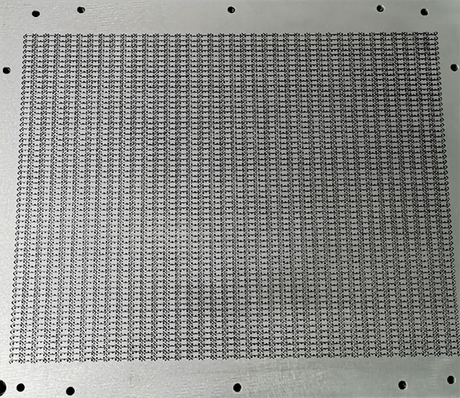

Material purity is non-negotiable in this sector. Outgassing destroys vacuum environments. Standard 6061 aluminum often contains trace elements that cause issues in high-vacuum chambers. You must use high-purity aluminum, quartz, or specialized engineering plastics. Blind tapped holes trap gas, requiring vented screws or specialized machining techniques to ensure proper evacuation.
Achieving ultra-low Ra surface finishes adds significant polishing time. The machine shop must use specialized wiper inserts and run extremely slow feed rates to achieve a mirror finish directly off the machine. Cleanroom standards require vacuum-grade cleaning and specialized packaging. Parts must be handled with gloves, ultrasonically cleaned, and sealed in nitrogen-purged bags.
Traceability adds administrative overhead. Maintaining strict lot control and material certifications prevents counterfeit materials from entering the supply chain. These stringent requirements heavily influence the cost of semiconductor precision machining components. Every step requires documentation and verification. The shop must maintain a robust Quality Management System to track the exact origin of every billet of material used in your assembly.
Assembly lines rely on robust workholding. Durability directly opposes cost reduction. You must select tough tool steels like A2, D2, or 4140. Hardening processes ensure the fixtures withstand high-cycle environments without degrading. Machining hardened steel requires specialized ceramic inserts or post-heat-treat grinding operations. Hard milling generates immense heat and requires rigid machine tools to prevent chatter.
Custom tooling amortization requires long-term planning. You spread the initial engineering and machining costs of precision metal fixtures for OEMs across the entire production lifecycle of your product. Investing in high-quality fixtures upfront prevents costly assembly line downtime later. A poorly designed fixture will cause alignment issues on your assembly floor, leading to rejected final products and massive rework costs.
Coordinate Measuring Machine programming takes highly skilled labor. Verifying complex, multi-feature parts consumes hours of metrology time. A complex aerospace housing might require a 400-point CMM inspection routine. The quality inspector must program the probe paths, calibrate the ruby styli, and fixture the part on the granite surface plate. This inspection time is billed directly to your project.
First Article Inspection reports demand rigorous documentation. AS9102 FAI reports require ballooning every dimension on the drawing and recording the exact measured value, the measurement tool used, and the inspector's signature. This administrative work adds direct cost to the initial order. If your drawing has 300 dimensions, the inspector must verify and document all 300 dimensions on the first part before the production run can begin.
Sampling plans dictate floor labor. Tight Acceptable Quality Limit levels force machinists to inspect every third part instead of every fiftieth part. This frequent pausing reduces spindle uptime. The operator must stop the machine, clean the part, and use micrometers or bore gauges to verify critical features. Strict quality assurance guarantees performance but requires a larger budget to accommodate the lost machining time.
Thermal and chemical treatments add logistical delays. Heat treating, anodizing, passivation, or plating usually happen off-site. The machine shop outsources this work to specialized finishing facilities. They add a markup for handling, packaging, and management. Transit time extends the overall lead time of your components.
Minimum lot charges from the plater inflate the cost of small batches. If you send five small parts for Type III hardcoat anodizing, the plater will charge their minimum batch fee, which drastically increases the per-unit cost. Masking threaded holes before anodizing or plating is a huge manual labor cost. A technician must manually insert silicone plugs into every tapped hole to prevent the chemical bath from altering the thread pitch diameter.
Manual deburring hides massive labor costs. If the CNC program cannot automate edge breaking with a chamfer mill, a technician must sit at a bench with a file, a deburring knife, and a microscope. This manual process introduces inconsistency and drives up the unit price. Designing parts that allow the CNC machine to chamfer all edges automatically eliminates this hidden cost.
Standardize your features whenever possible. Use standard radii for internal corners. If you design a pocket with a 0.125-inch corner radius, the shop can use a standard 0.250-inch diameter end mill. If you design a sharp internal corner, the shop must use electrical discharge machining or broaching, which costs thousands of dollars and delays production. Relieving internal corners with dog-bone cutouts eliminates the need for slow, precise contouring passes.
Relax non-critical tolerances. Implement Geometric Dimensioning and Tolerancing strategically. Allow larger tolerance zones on surfaces hanging in open space. Use profile tolerances to control the overall shape without forcing the machinist to hold tight linear dimensions on non-mating features. True position callouts allow for circular tolerance zones, providing the machinist with more breathing room than traditional square coordinate tolerances.
Consolidate parts to reduce assembly time. Evaluate if a three-part bolted assembly can become a single machined billet. You save on assembly labor, fasteners, and multiple fixturing setups. While the single billet might require more machining time, eliminating the hardware and the assembly labor often results in a lower final cost.
Match part complexity to supplier capability. Do not send a simple aluminum mounting bracket to an AS9100-certified aerospace facility. You will pay for overhead, strict climate control, and administrative processes you do not need. Conversely, do not send a complex 5-axis manifold to a local garage shop lacking the proper metrology equipment. They will struggle to hold the tolerances, resulting in rejected parts and missed deadlines.
Capacity and lead time volatility affect pricing directly. Expedited lead times always incur premium charges. Shops must break down existing setups and pay operators overtime to push your parts to the front of the line. Blanket orders and kanban agreements stabilize pricing. By providing the shop with a reliable forecast, they can optimize their machine schedules and purchase raw materials in bulk.
Evaluate overall supplier value beyond the line-item quote. Assess defect rates, communication speed, and on-time delivery metrics. A cheaper part that arrives three weeks late costs you more in production downtime than paying a slight premium for a reliable supplier. Request a facility list from prospective partners to verify they own the specific machine tools required to manufacture your parts efficiently.
Audit current component drawings to identify and eliminate tight tolerances on non-mating surfaces.
Engage a manufacturing engineer for a comprehensive Design for Manufacturability review before locking any new CAD models.
Request detailed, itemized quotes from prospective machining partners to pinpoint specific setup and tooling bottlenecks.
Establish blanket orders for stable-demand components to amortize setup costs across larger production volumes.
A: Tight tolerances force machinists to slow down feed rates and take multiple spring passes to prevent tool deflection. This increases cycle time. It also requires temperature-controlled environments and frequent metrology checks, driving up labor costs and increasing the risk of scrap.
A: Materials with poor machinability destroy cutting tools rapidly and require slower spindle speeds. The cost of replacing carbide end mills and the extended machine time often exceed the savings gained from purchasing a cheaper, harder-to-machine raw material.
A: OEMs can reduce costs by engaging in Design for Manufacturability early. Standardizing internal corner radii, relaxing tolerances on non-mating surfaces, and consolidating multi-part assemblies into single billets significantly reduces setup time and custom tooling requirements.
A: Hidden costs include the need for high-purity materials to prevent outgassing, ultra-low Ra surface finishes, vacuum-grade cleaning, and cleanroom packaging. Maintaining strict lot traceability and material certifications also adds administrative overhead to the final price.
A: CNC machining becomes highly cost-effective when the production volume is large enough to amortize the initial setup, programming, and fixturing costs. While prototyping bears the full weight of setup labor, ordering hundreds of parts reduces the per-unit setup cost to a fraction.
